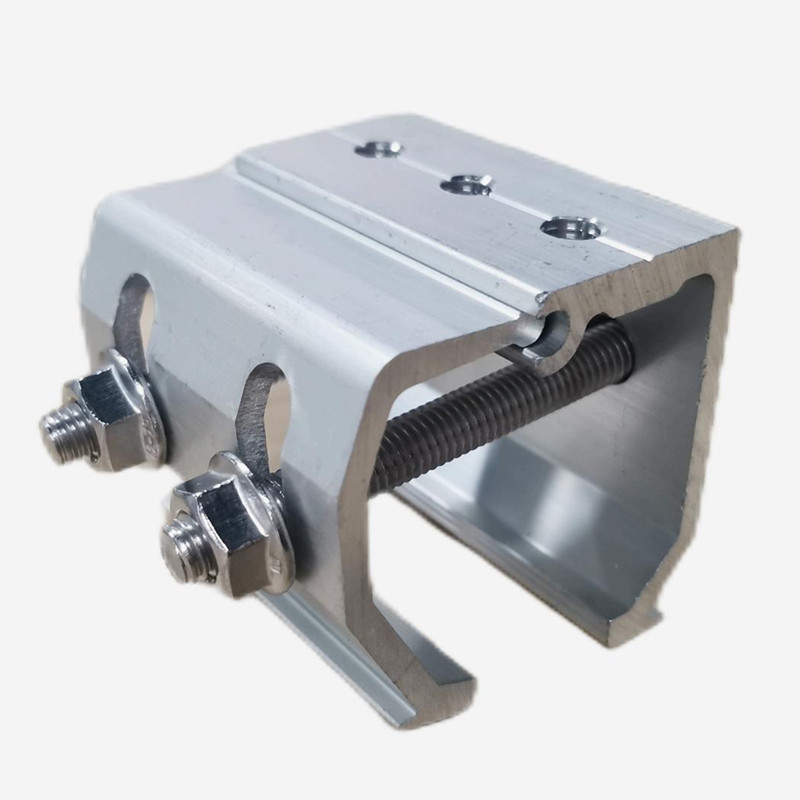

Universal Solar Roof Klip Lok Clamp applied for kinds of Klip-lok Roofs. This clamp is made of high quality anodized aluminum, fastners are stainless steel 304, with a high corrosion-resistant.
Application :
Solar roof mountingItem No :
LE-URC-01Material :
Al6005-T5 & SUS304Lead Time :
With 15 daysProduct Description:
Link Energy provide solar Universal Klip-lok Clamp for solar mounting structure.Universal Klip Lok Clamp is almost for all kind of standing seam roofs. Link Energy solar panel Klip-lok clamp is welcome by most of solar installers, solar distributors and EPC company, we can provide customized with OEM service if you need.
Product Parameters:
| Brand | Link Energy |
| Product name | Universal Klip-lok Clamp |
| Dimensions |
60x55.5 mm |
| Material | Al6005-T5 & SUS304 |
| Weight | 0.203 kg |
| Max. fastening torque |
14.5 Nm |
| Color | Mill or Black |
| Drive |
Hexagon Socket M8 |
| Pre-assembled |
Yes |
| Samples | Free sampls, pls contact us. |
| Shipping port | Xiamen, China |
| Payment | TT/LC |

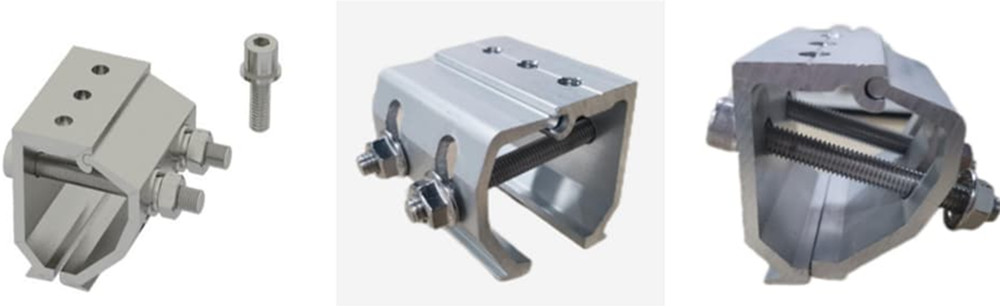

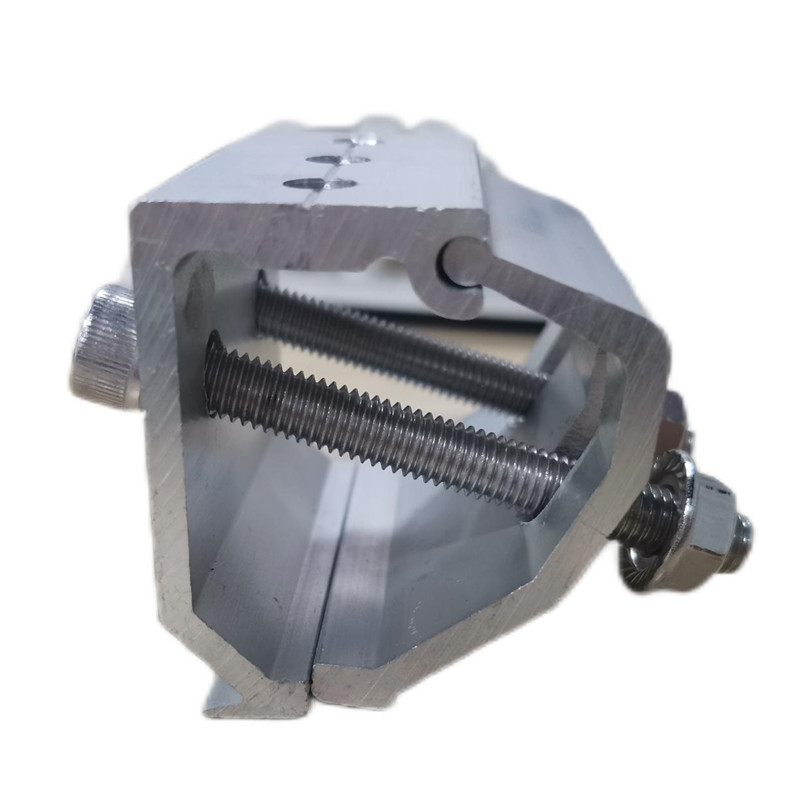

Product Details:

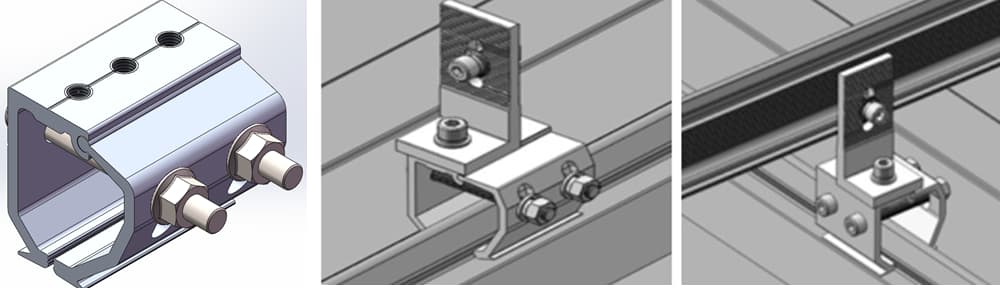

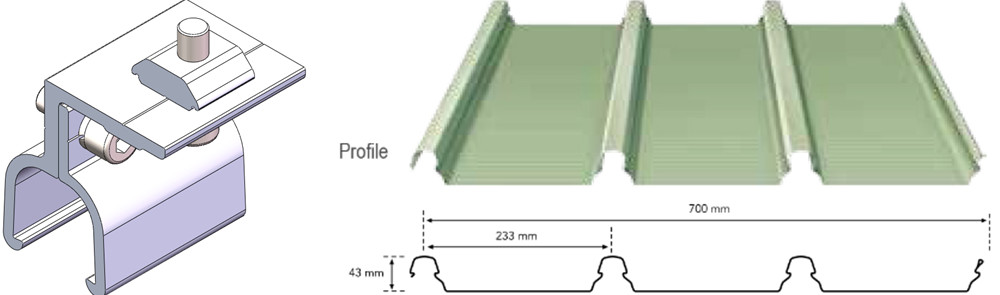

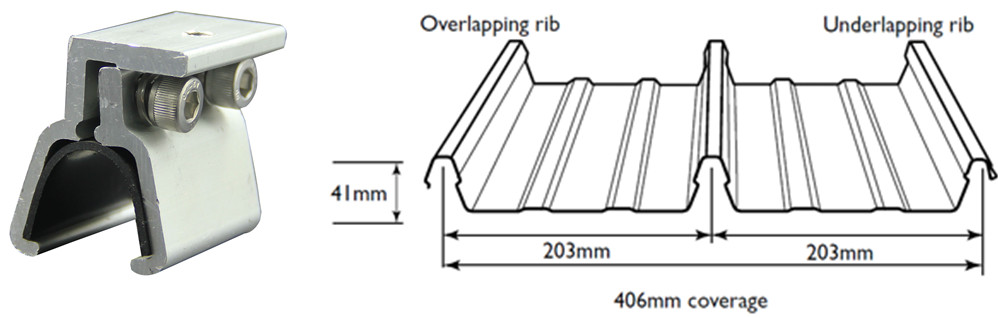

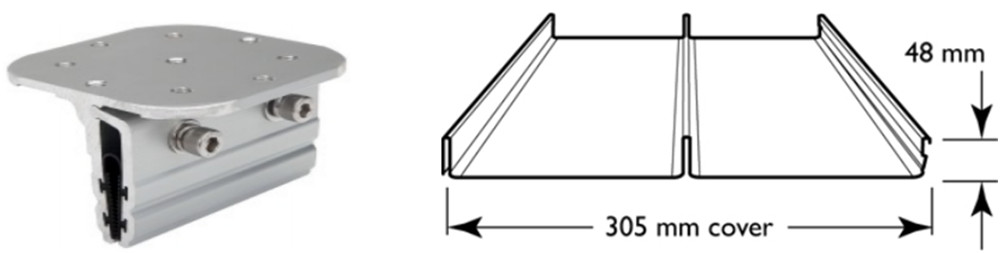

Application:
