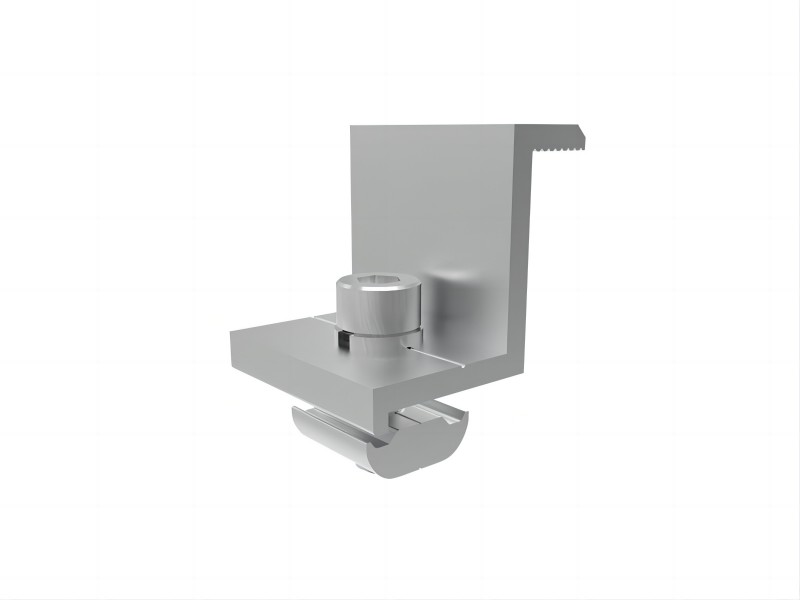

Aluminum solar end clamp is applied for 25-50mm framed solar modules. These clamps are made of high quality anodized aluminum, and fasteners are stainless steel 304, with high corrosion-resistant.
Application :
Solar panel mountingItem No :
LE-R-EC25-01Material :
Al6005-T5 & SUS304Size :
30mm or 35mm or 40mmColor :
Silver or BlackModule Orientation :
Portrait or landscapeFinish :
AnodizedProduct Description:
Link Solar Energy universal end clamp is applied to solar panel mounting structure. Univeral end clamp series is suitable for 25mm-50mm framed solar panels. Link Solar Energy solar panel end clamps are popular with most of solar installers, solar distributors and EPC company. The customized service and OEM service are both accepted.
Product Parameters:
| Brand | Link Solar Energy |
| Product name | Solar end clamp |
| Solar panel available | Framed solar panel from 30-50mm |
| Material | Al6005-T5 & SUS304 |
| Surface | Anodized |
| Color | Sliver or black |
| Samples | Free sampls, pls contact us. |
| Shipping port | Xiamen, China |
| Payment | TT/LC |
| Lead Time | Within 15 days |
| Product Origin | China |
| MOQ | 1 set |
| Applicable Module | Framed module |
Features:
1. Simple structure, easy installation, save time and cost
2. Corrosion resistant aluminum and stainless steel components
3. Available for different solar panel
4. Designed for residential and commercial applications
Components List:
 |
 |
 |
|

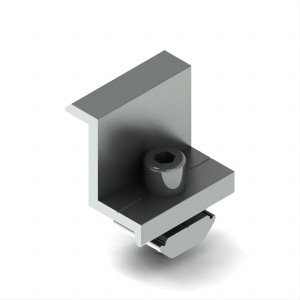

LE-R-EC30-02 |

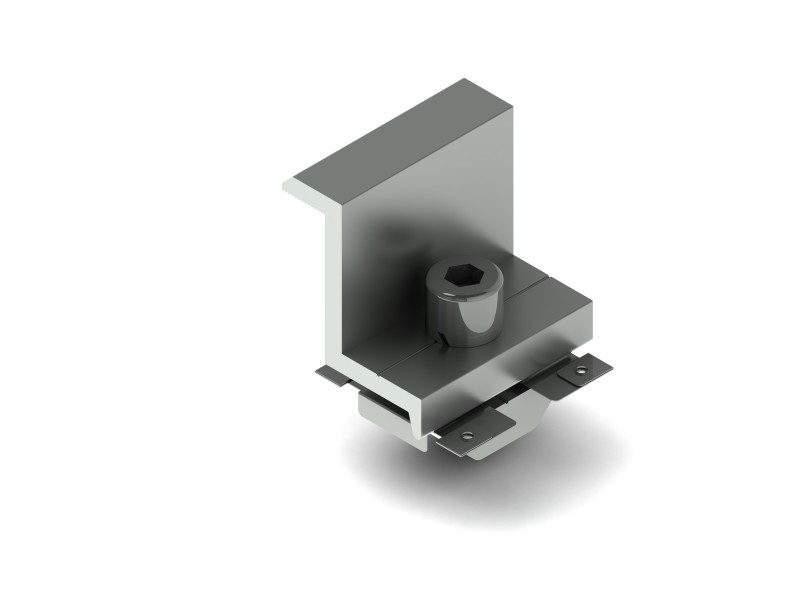

LE-R-EC35-04 |

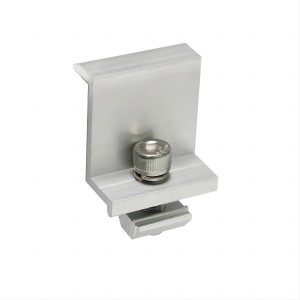

LE-R-EC40-05 |
Installation Guide:
 |
 |
 |
|

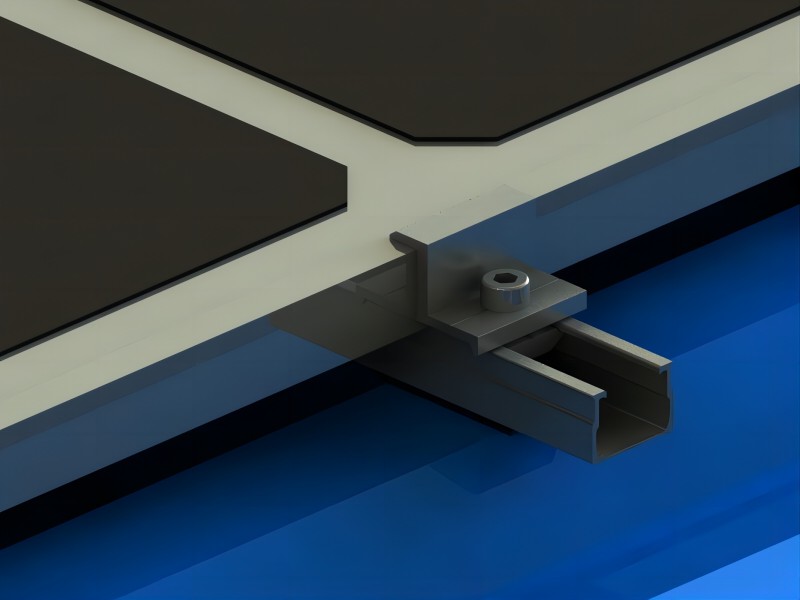

1. Place end clamp on rail and adjust it |

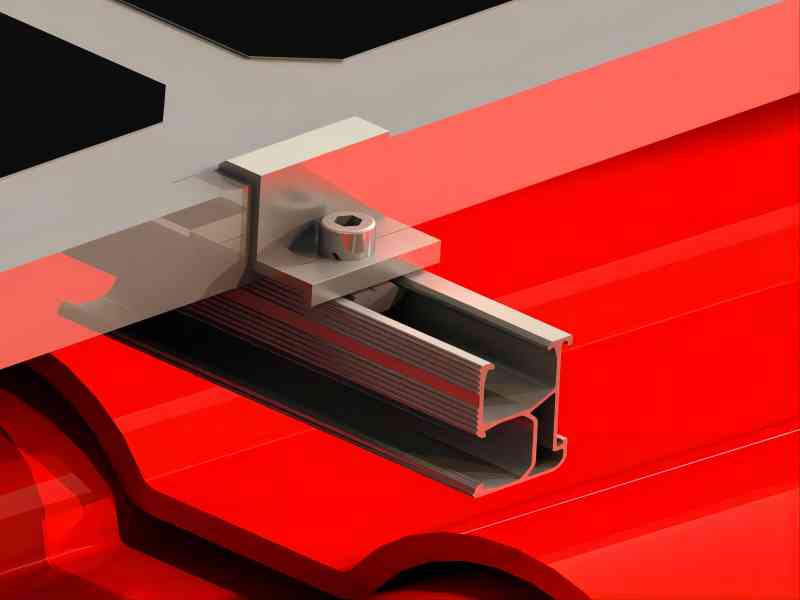

2. Fix the end clamp on rail |

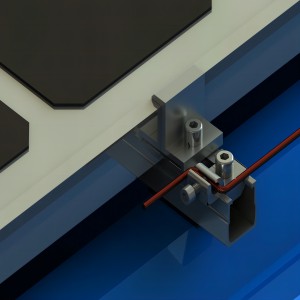

3. Install the grounding lug |

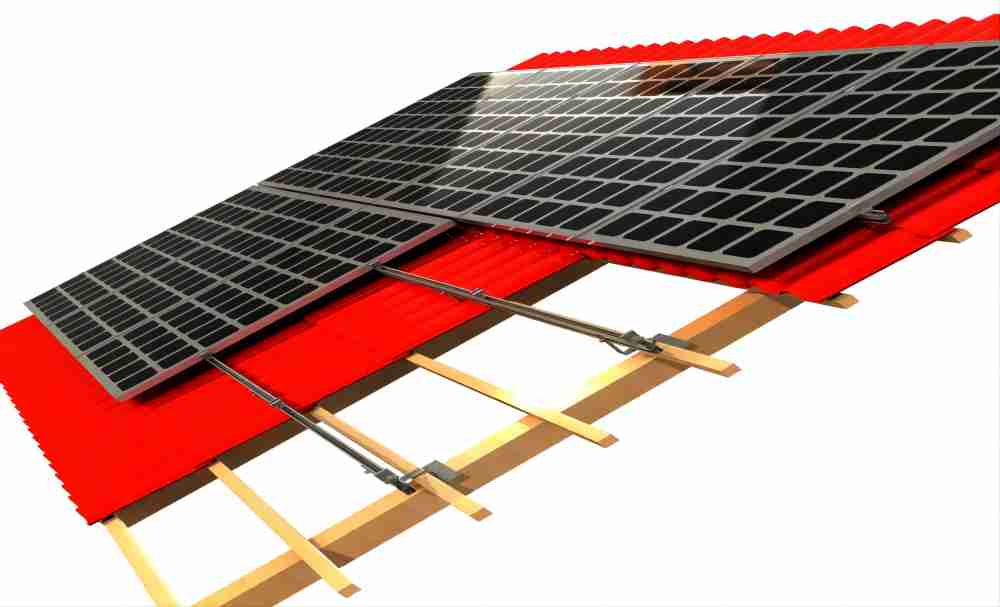

Our Projects:

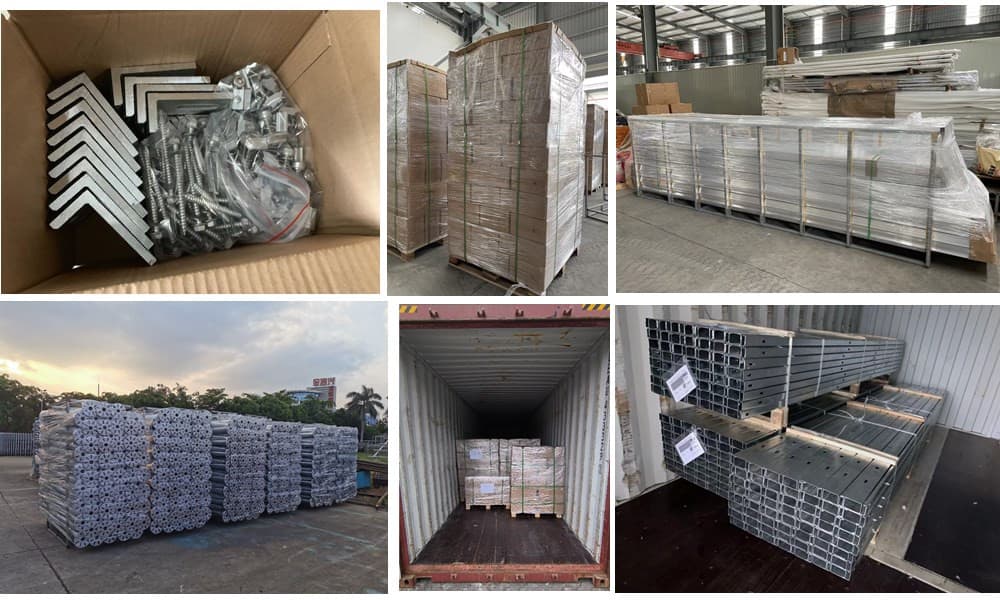

Packaging & Shipping:
