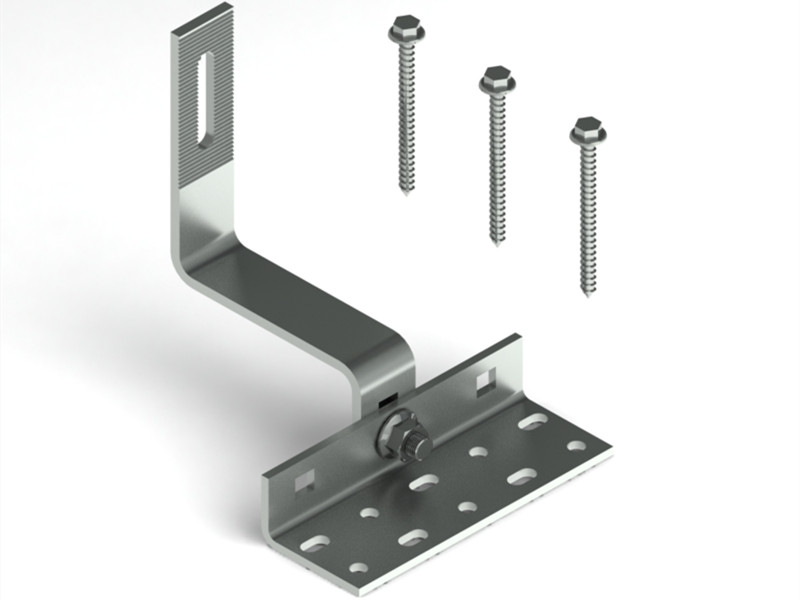

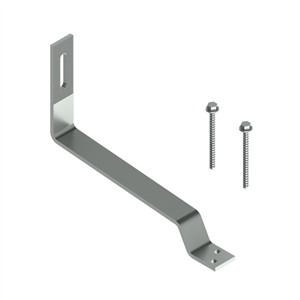

Solar tile roof hooks are made by high-quality stainless steel 304, fixed, single adjustable and double adjustable are all available.
Application :
Tile roof solar mountItem No :
LE-R-AH001Material :
Stainless steel 304Size :
Standard or CustomizedColor :
SilverLead Time :
Within 15 daysApplicable Module :
Framed or frameless moduleModule Orientation :
Portrait or landscapeProduct Description:

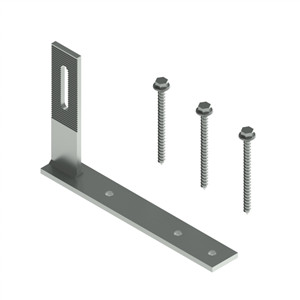

Link Solar Energy solar tile roof hooks are SUS304 stainless steel material, suitable for installing solar panels on sloped tile roof. You can fix the roof hook to wooden purlins with 3pcs M6.3x80mm self-tapping screws. We have many different types of roof hooks to choose from.
Product Parameters:
| Brand | Link Solar Energy |
| Maretial | Stainless steel 304 |
| Surface | Sandblasted |
| Samples | Free samples |
| Max. wind speed | 60m/s |
| Max. snow load | 1.4KN/m² |
| Warranty | 12 years |
| Service life | 25 years |
| Installation site | Tile roof |
| Tilt angle | Same as the roof |
| Shipping port | Xiamen, China |
| Payment |
TT/LC |
Features:
1. No MOQ required.
2. Made of high strength stainless steel 304.
3. Fixed or height adjustable is available.
4. Factory price and fast delivery.

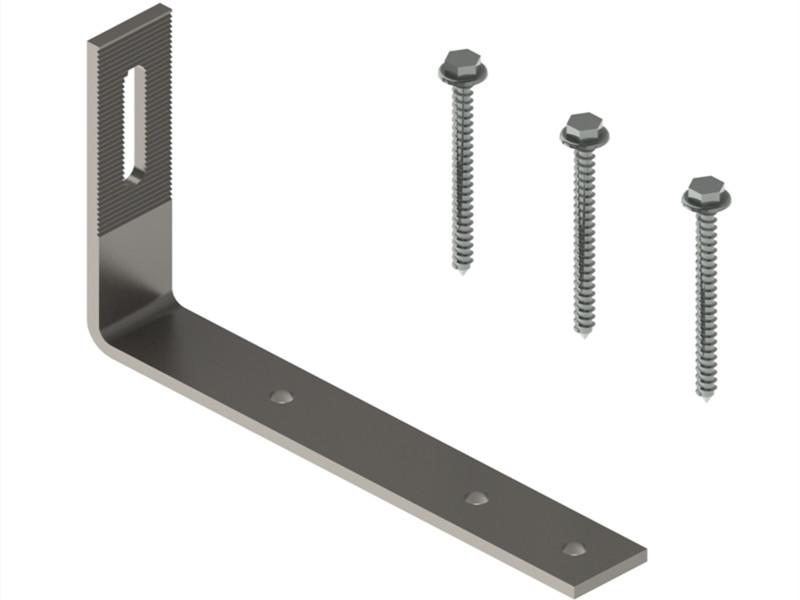

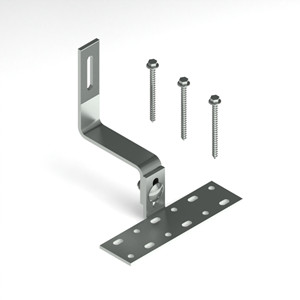

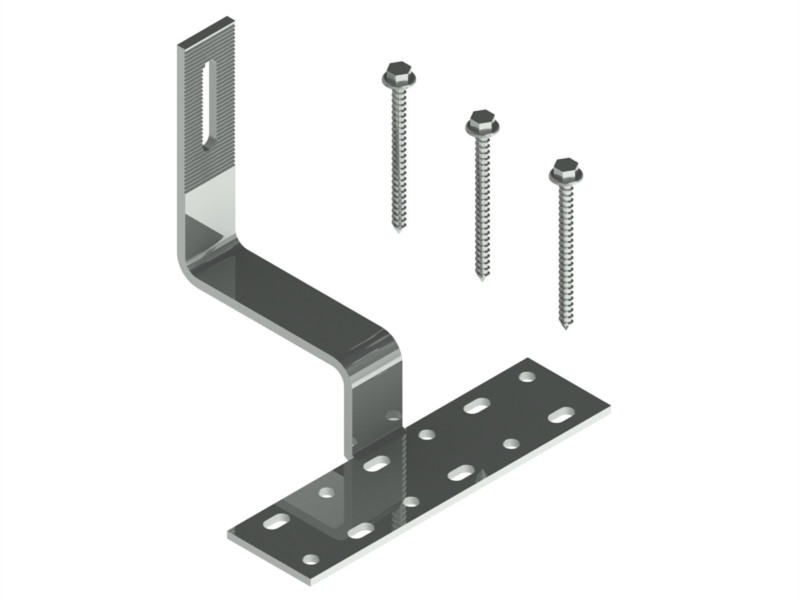

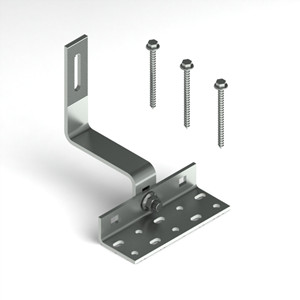

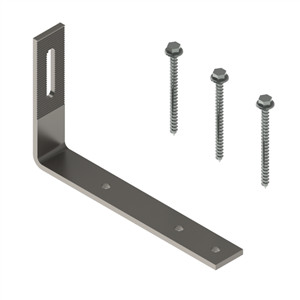

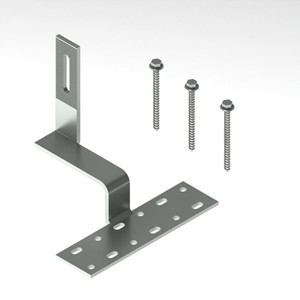

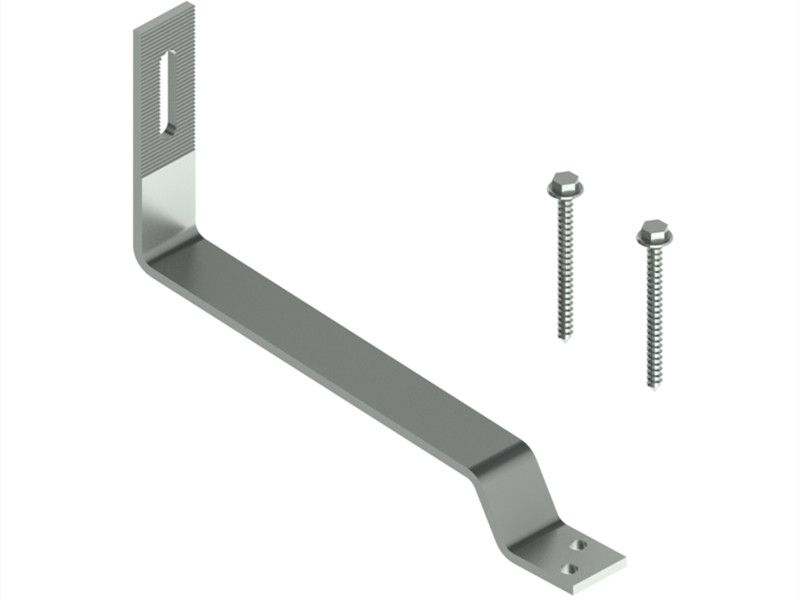

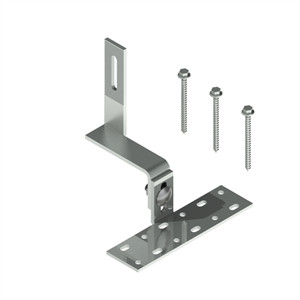

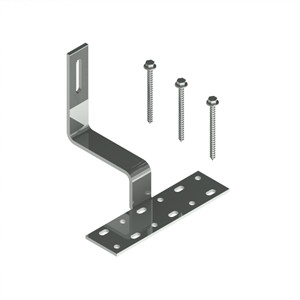

Hook Types:
 |
 |
 |
|
LE-R-AH001
|
LE-R-H001
|
LE-R-H012
|
 |
 |
 |
|
LE-R-H007
|
LE-R-AH007
|
LE-R-H005
|
 |
 |
 |
|
LE-R-H006
|
LE-R-AH010
|
LE-R-H008
|
Installation Guide:
 |
 |
 |
|

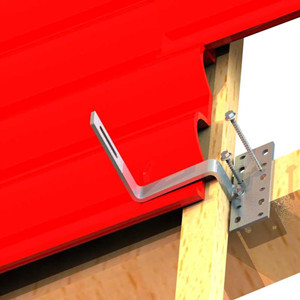

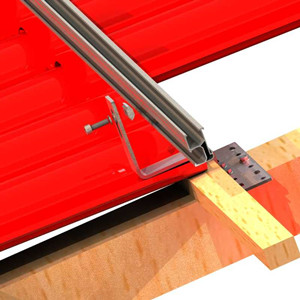

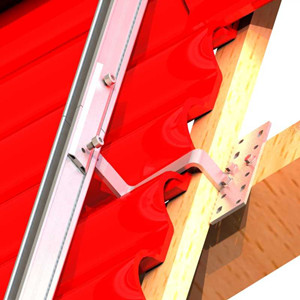

1. Remove tile and fix tile hook on roof beam. |

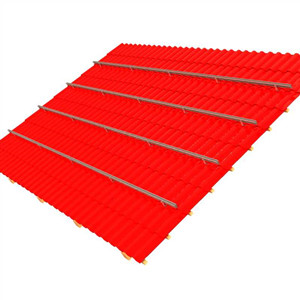

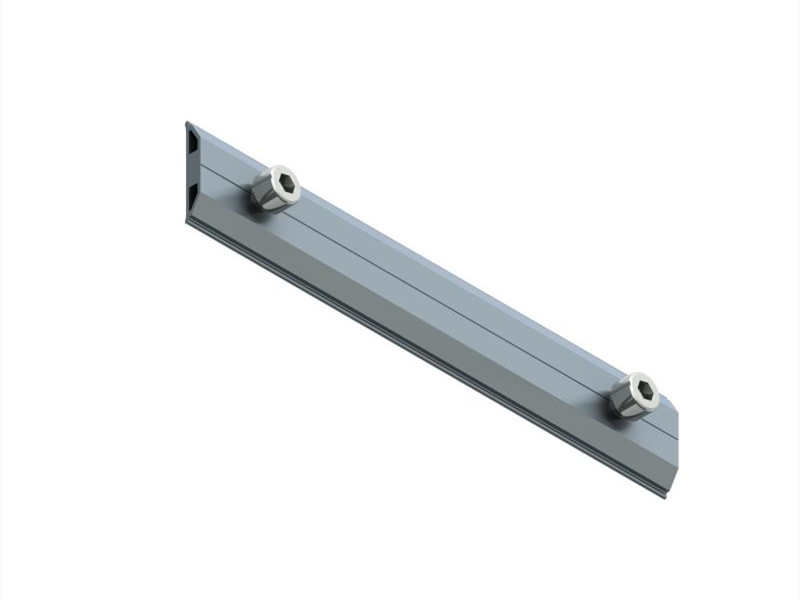

2. Fix solar rail on tile roof hook. | 3. Use rail splice to connect two solar rail. |
 |
 |
|

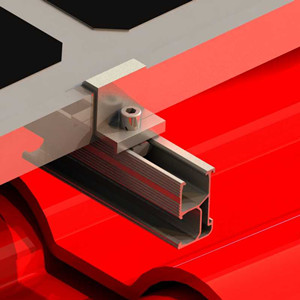

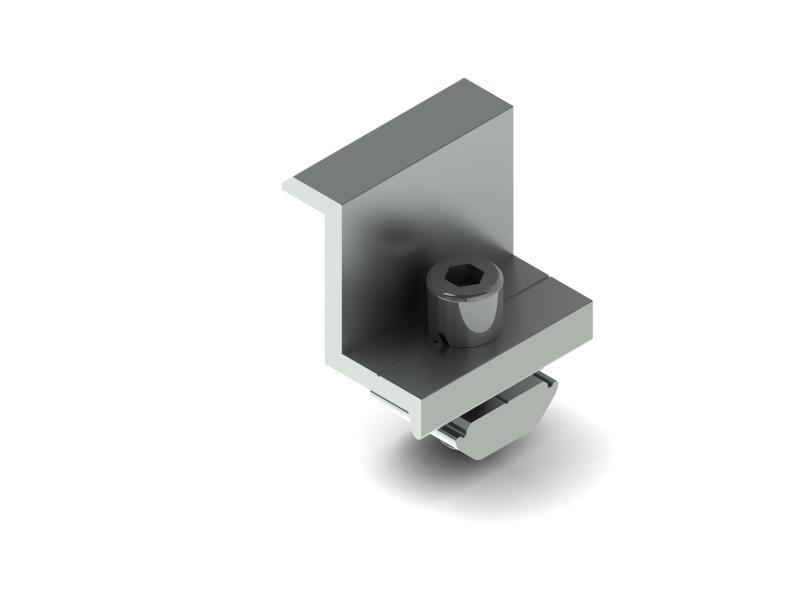

| 4. Install all the solar rail as per technical drawing. | 5. Install the end clamps to fix the panel. |

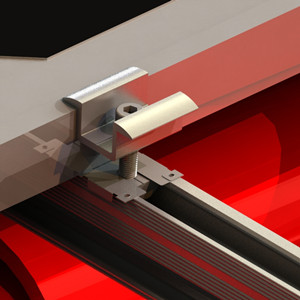

6. Install the mid clamps to fix the panel. |

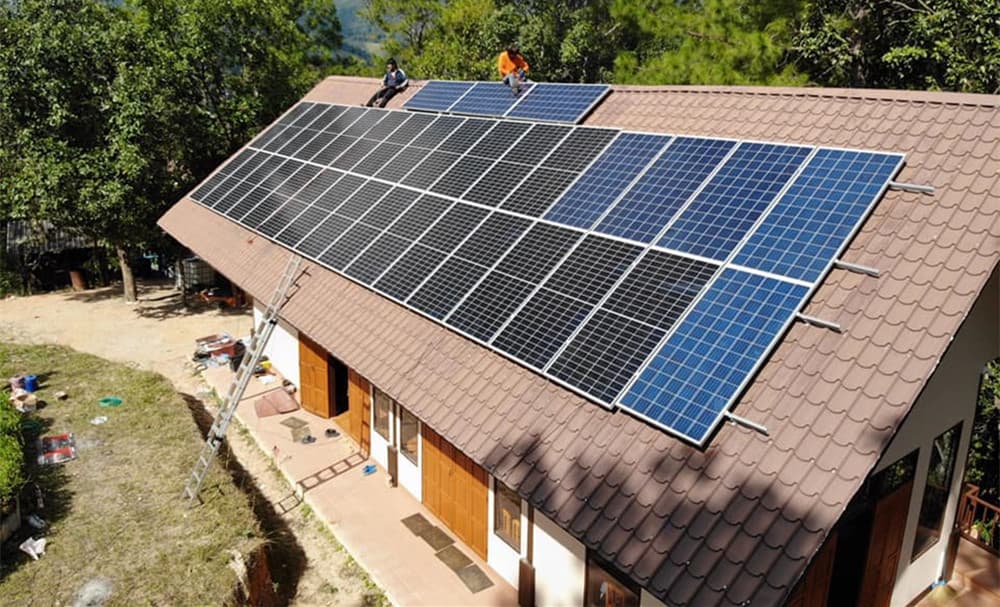

Our Projects:
Packaging & Shipping:

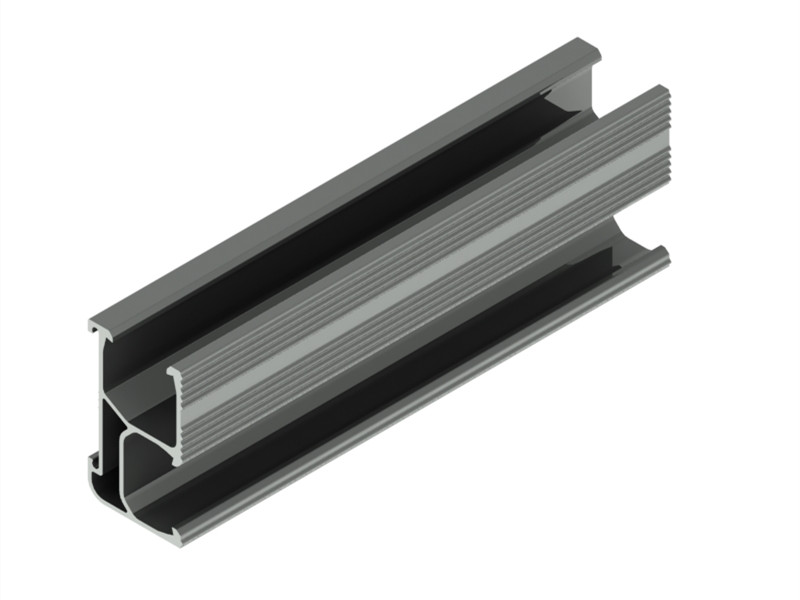

Aluminum solar rail is made of high strength anodized aluminum. The use of aluminum rails has become more and more popular in the solar industry due to their lightweight nature, durability and easy installation.
Read More

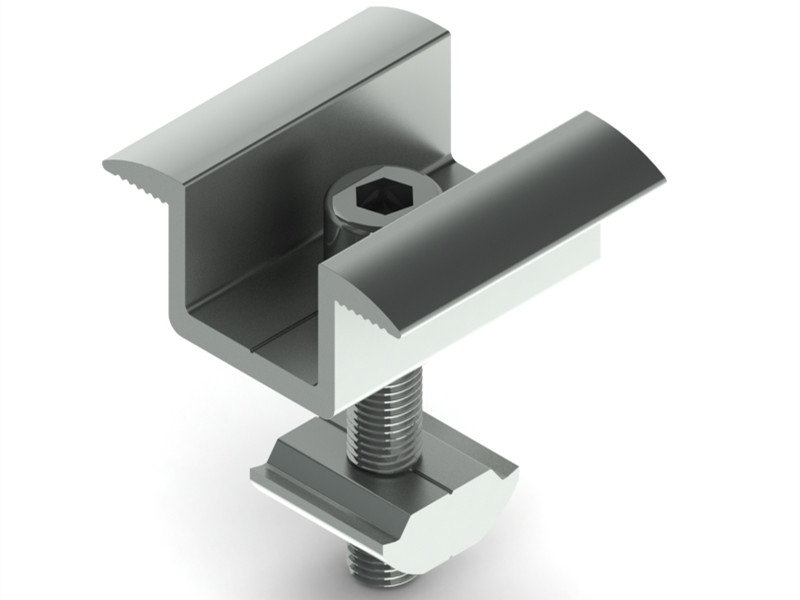

Solar mid clamp applied for framed solar modules from 25-50mm. This clamp is made of high quality anodized aluminum, fasteners are stainless steel 304, with a high corrosion-resistant.
