Solar L Foot Brackets For Tin Roof Mount

Solar L Foot Brackets For Tin Roof Mount

Solar mounting brackets L feet is applied to trapezoid, corrugated, and other tin roofs. L feet is equipped with wooden screw connection options to achieve maximum versatility and can be combined with all common solar rails.

  • Application :

    Solar tin roof mount
  • Item No :

    LE-R-LF-SD01
  • Material :

    Al6005-T5
  • Size :

    30mm
  • Color :

    Silver
  • Module Orientation :

    Portrait or landscape
  • Finish :

    Anodized

Product Description:

Link Solar Energy L Feet Mounting Brackets for metal roofs are suitable for residential, commercial and industrial solar projects. It has been widely used for general purpose corrugated and trapezoid metal roofs. In addition, it can be used with a variety of hanging bolts and roof clamps.



Product Parameters:

Brand

Link Solar Energy

Material

Al6005-T5

Surface Coating

Anodized

Samples

Free samples

Max. Wind Speed

60m/s

Max. Snow Load

1.4KN/m²

Warranty

12 years

Service Life

25 years

Installation site

Metal/tin roof

Tilt angle

The same as the roof

Shipping port

Xiamen, China

Payment

TT/LC

Lead Time

Within 15 days

Product Origin

China

MOQ

1 set

Applicable Module

Framed or frameless module



Features:

1. Simple structure, easy installation, save time and cost

2. Corrosion resistant aluminum and stainless steel components

3. Available for different tin rooftops

4. Designed for residential and commercial applications

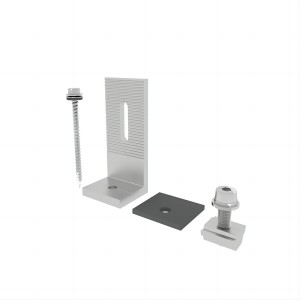

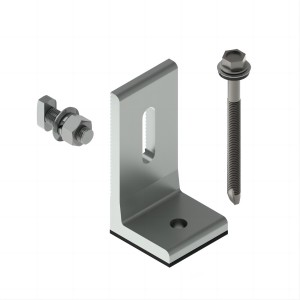

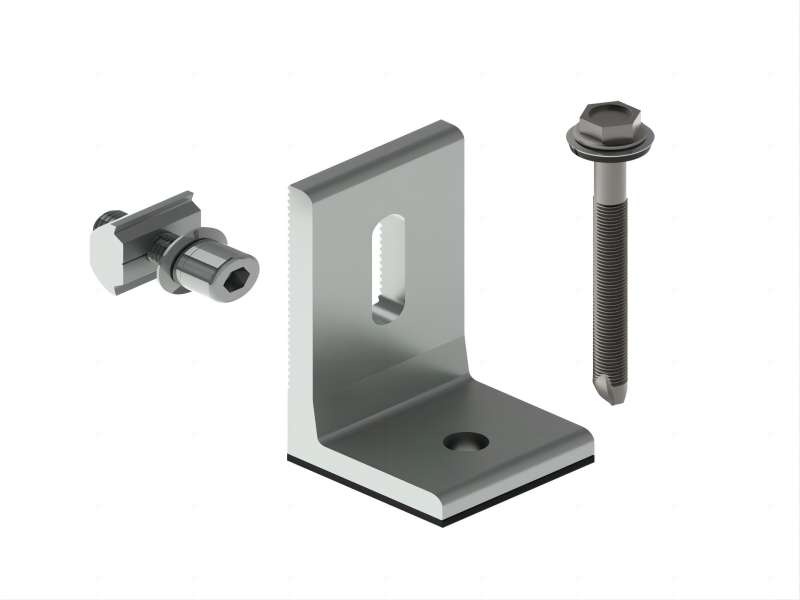

Components List:

solar L feet solar panel mounting L feet solar L feet kit

LE-R-LF-SD01

LE-R-LF-SD03

LE-R-LF-ST02



Installation Guide:

solar metal roof L feet bracket solar metal roof L feet solution solar metal roof solution

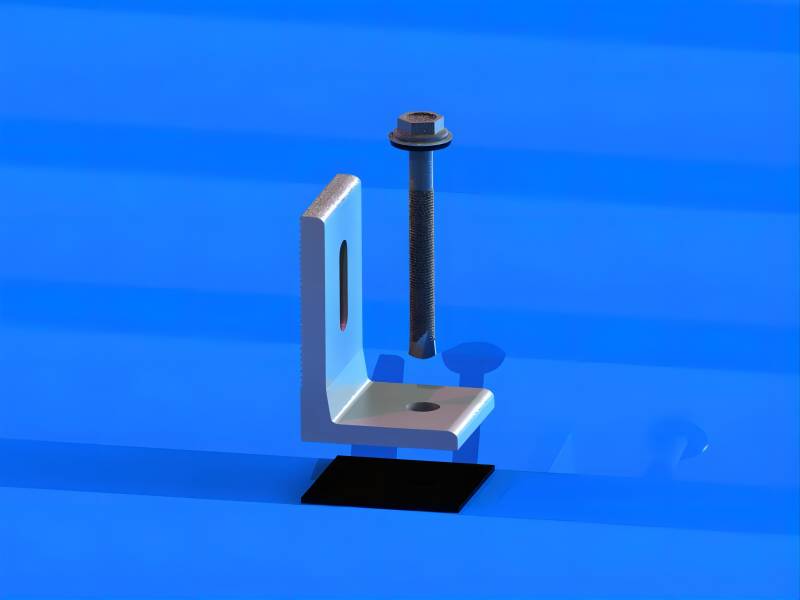

1. Install the rubber pad and L feet in marked position

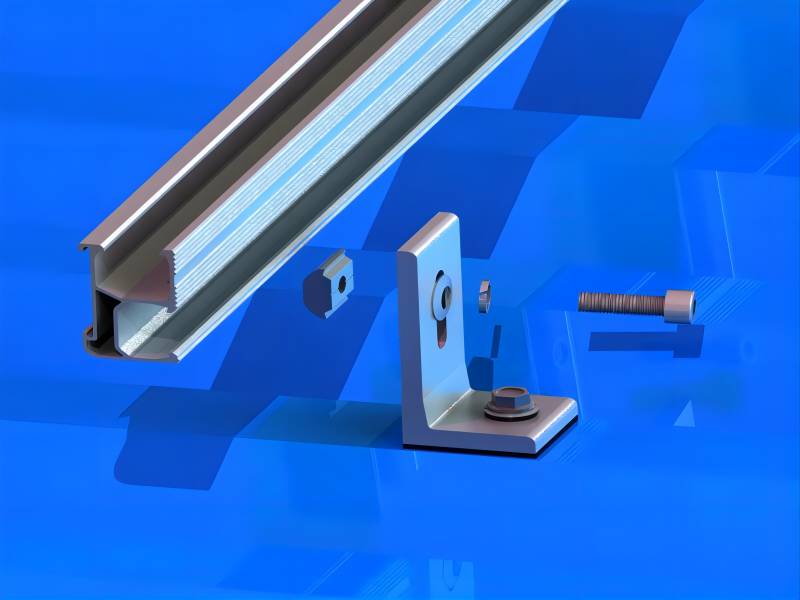

2. Fix the rail to L feet by T nuts on the whole roof

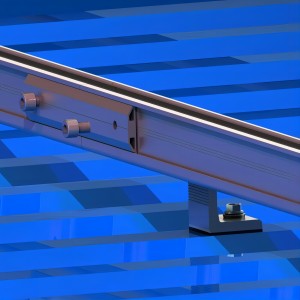

3. Connect the rail with rail splice to reach needed length

solar mounting structure L feet solar tin roof bracket solar L feet bracket

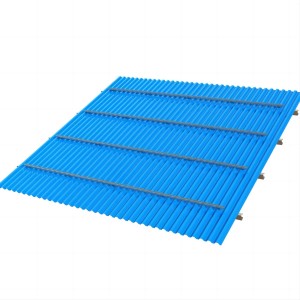

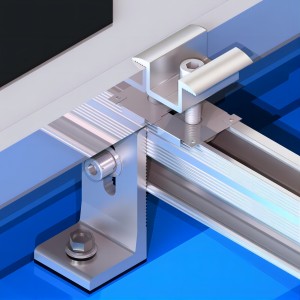

4. Install L feet, rail and rail splice on roof

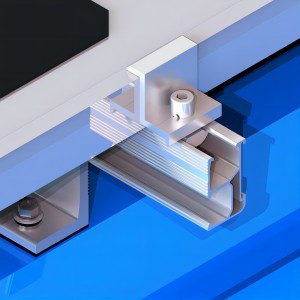

5. Install the end clamps to fix the panel

6. Install the mid clamps to fix the panel

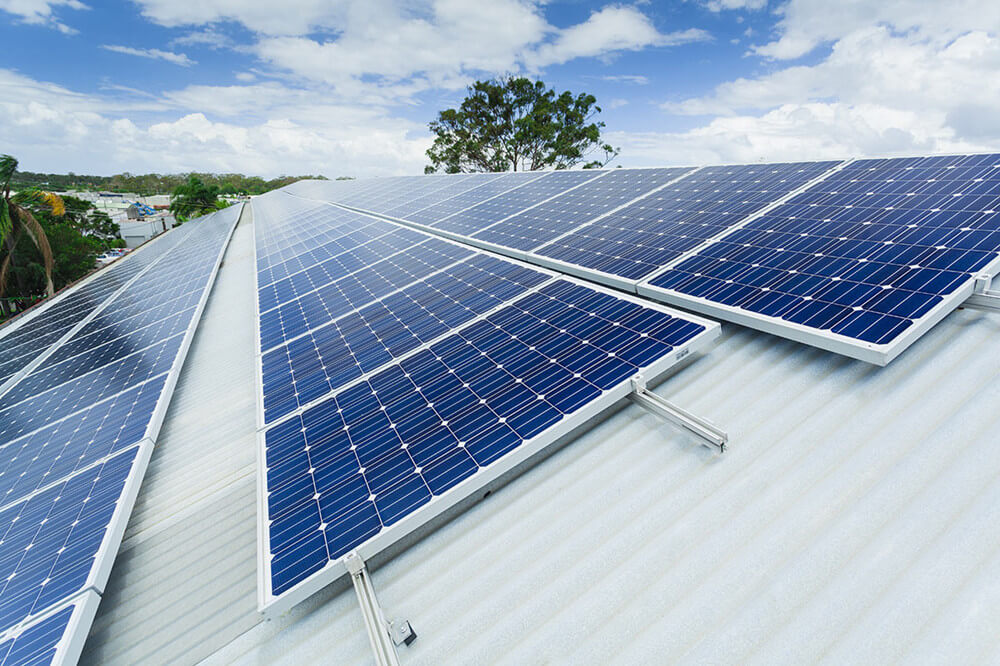

Our Projects:

solar brackets metal roof

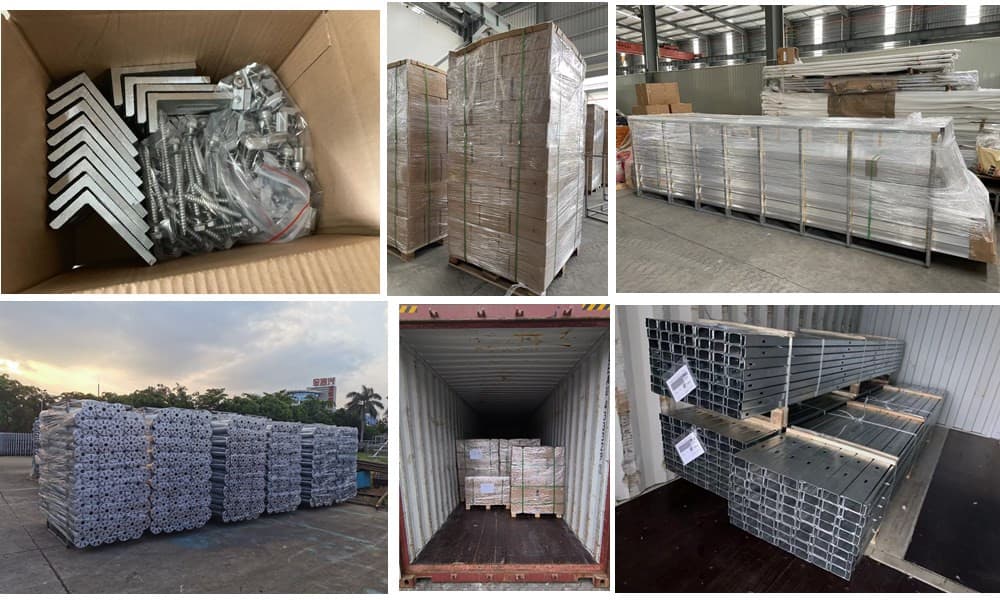

Packaging & Shipping:

solar mounting L feet
