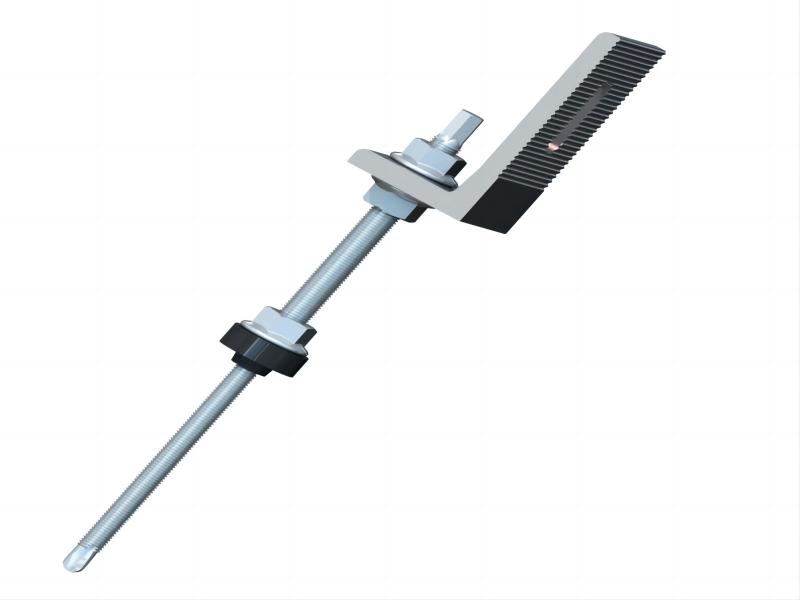

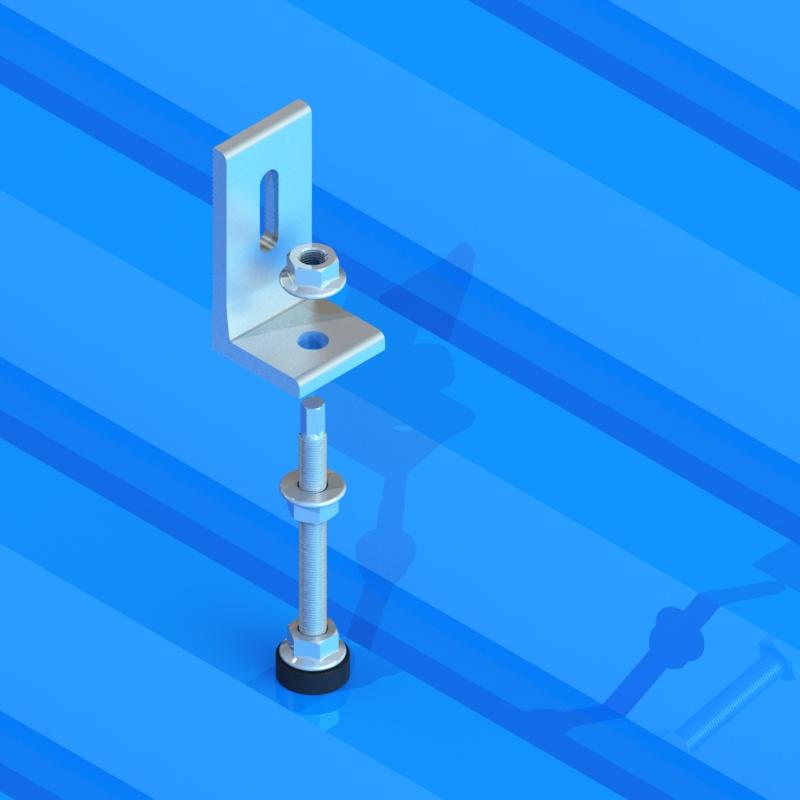

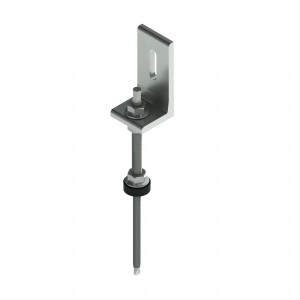

The L-feet hanger bolt is a key component in solar mounting systems, designed specifically for elevation on corrugated or trapezoidal sheet metal roofs. Hanger Bolt applies to install on both wooden rafters and steel purlin.
Application :
Solar metal roofItem No :
LE-R-LFHB-T05Material :
SS304Size :
M10×200, M10×250, M10×300Color :
SilverModule Orientation :
Portrait or landscapeFinish :
AnodizedProduct Description:
Link Solar Energy L feet with Hanger Bolt is used to securely attach solar panel racks to the roof structure. The hanger bolt typically has a threaded end that allows the attachment of an L-feet, which provides a secure, adjustable platform for the solar panel mounting rails. This design ensures a firm hold while also offering adjustability for optimal solar panel orientation and angle.
Product Parameters:
|
Brand |
Link Solar Energy |
|
Material |
SS304 |
|
Surface Coating |
Anodized |
|
Samples |
Free samples |
|
Max. Wind Speed |
60m/s |
|
Max. Snow Load |
1.4KN/m² |
|
Warranty |
12 years |
|
Service Life |
25 years |
|
Installation site |
Solar panel mounting |
|
Tilt angle |
The same as the roof |
|
Shipping port |
Xiamen, China |
|
Payment |
TT/LC |
|
Lead Time |
Within 15 days |
|
Product Origin |
China |
|
MOQ |
1 set |
|
Applicable Module |
Framed or frameless module |
Features:
1. Simple structure, easy installation, save time and cost
2. Corrosion resistant aluminum and stainless steel components
3. Available for different tin rooftops
4. Designed for residential and commercial applications

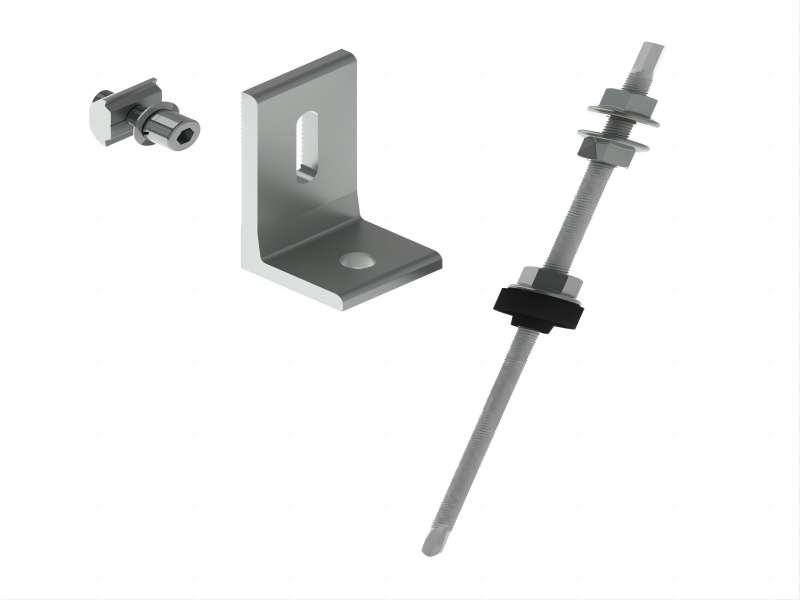

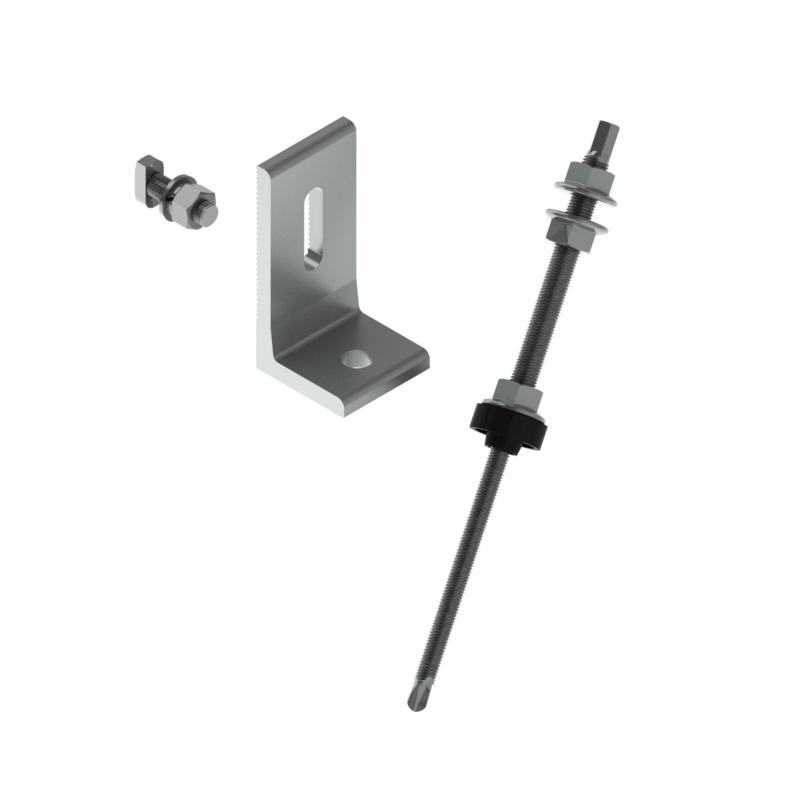

Components List:
 |
 |
 |
|
LE-R-LFHB-T05 |
LE-R-LFHB-T05 |
LE-R-LFHB-FB06 |

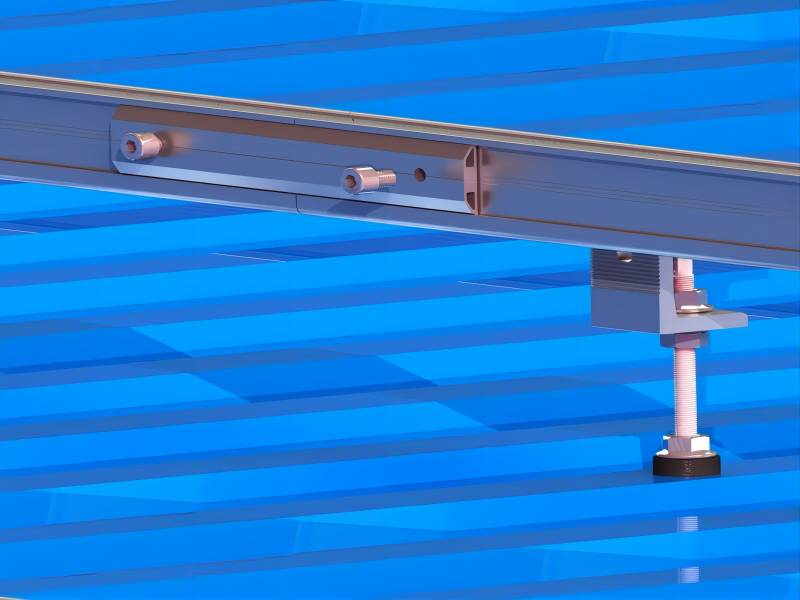

Installation Guide:
 |
 |
 |
|
1. Install the pre-assembled hanger bolts in marked position |

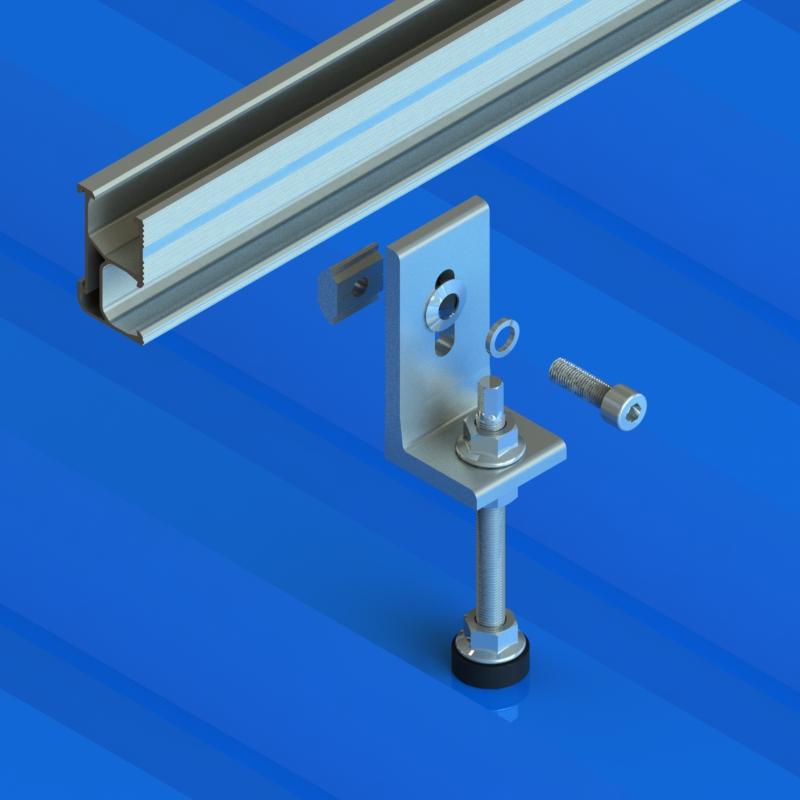

2. Fix the rail to L feet by T nuts on the whole roof |

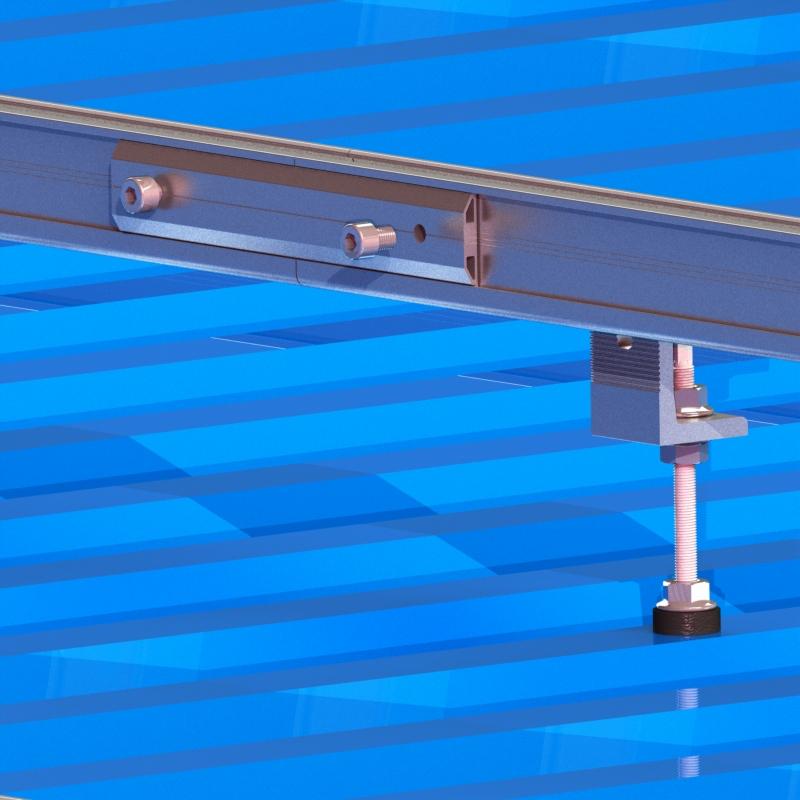

3. Connect the rail with rail splice to reach needed length |
 |
 |
 |
|

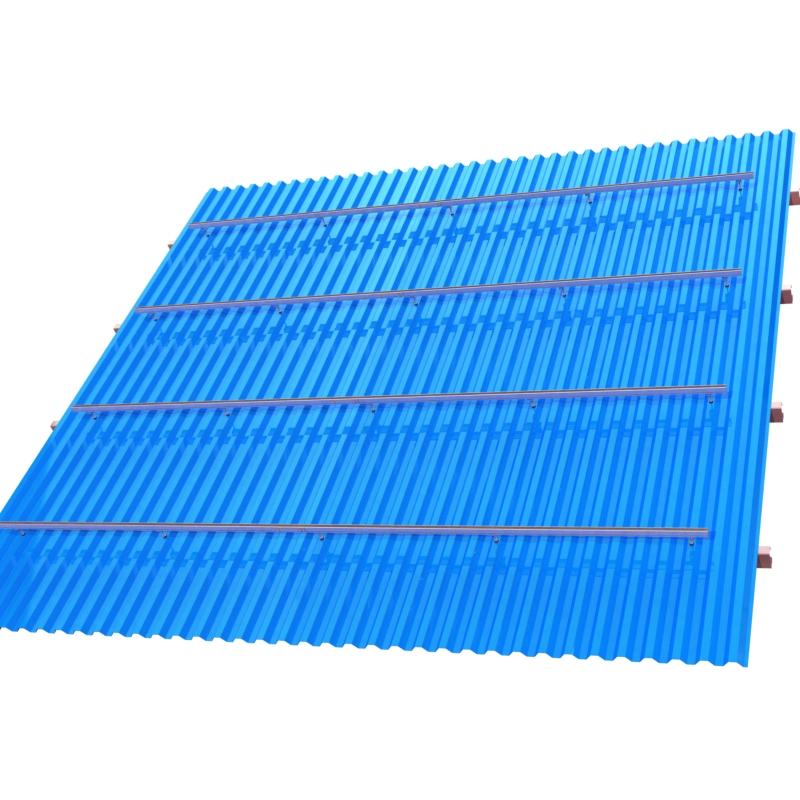

4. Install L feet, rail and rail splice on roof |

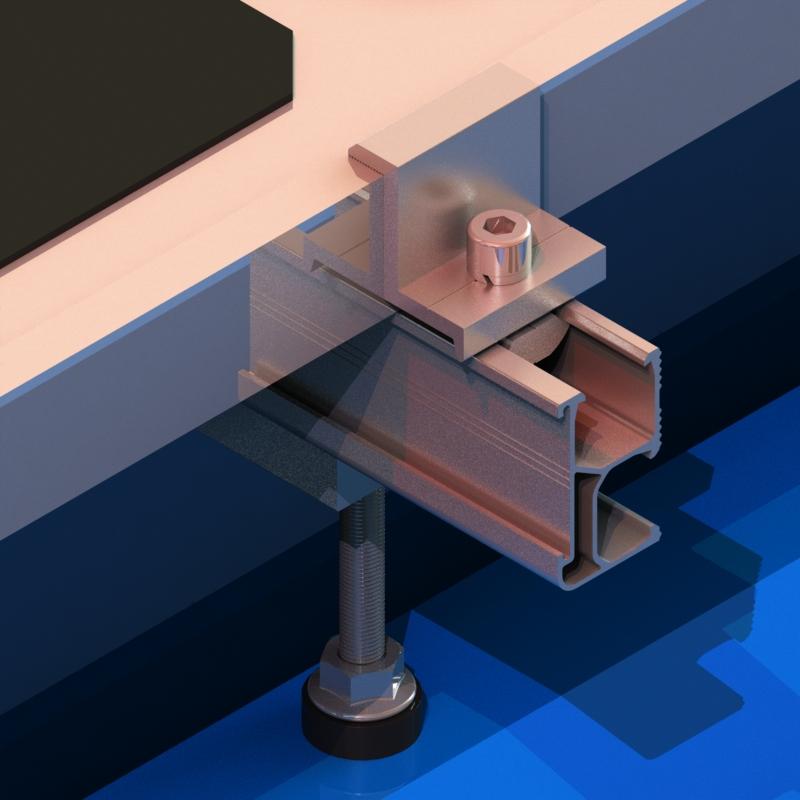

5. Install the end clamps to fix the panel |

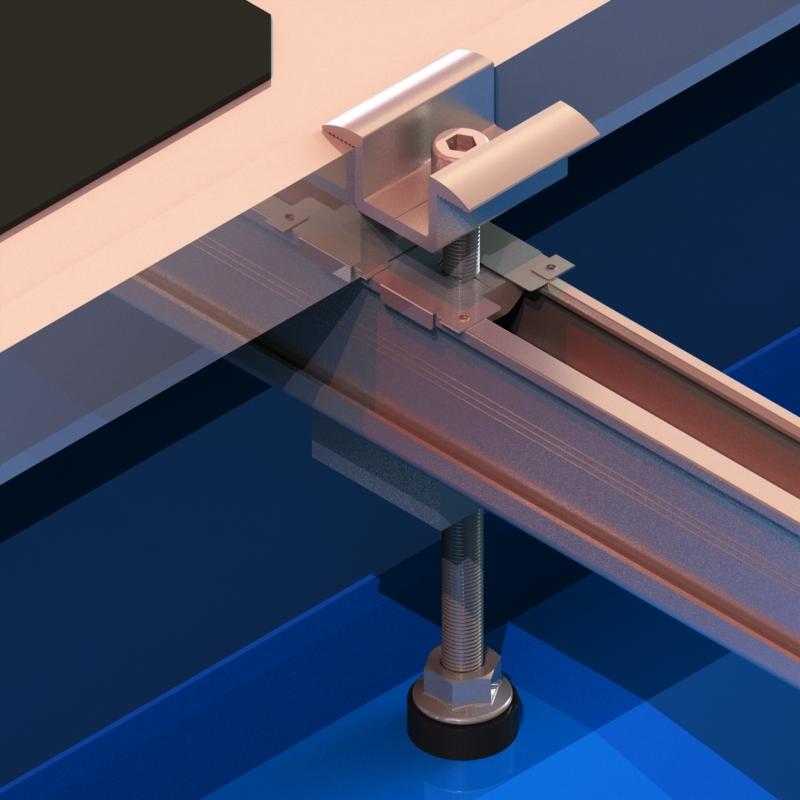

6. Install the mid clamps to fix the panel |

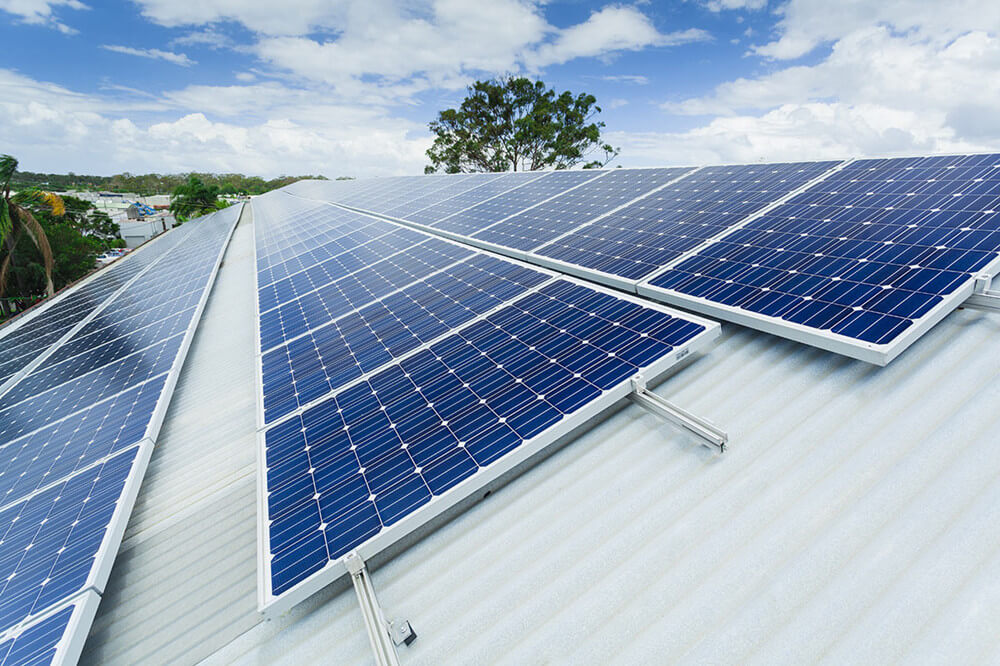

Our Projects:

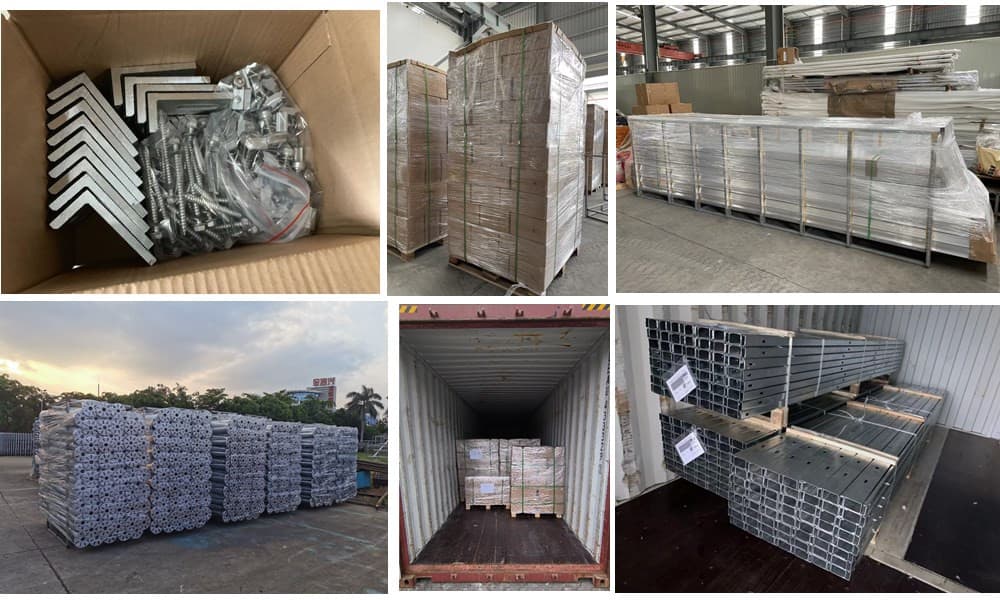

Packaging & Shipping:
