HDPE Plastic Ballasted Solar Mounting is one kind of ballasted mounting structure, compared with other aluminum and steel structure, it is easy to install and save more time. By the way, it is anti-corrosive which generally has 20 years service time.
Application :
Flat roof or groundItem No :
LE-PB-01Material :
HDPELead Time :
Within 15 daysApplicable Module :
Framed or frameless moduleModule Orientation :
Portarit or landscapeProduct Introduction:
Link Energy HDPE Plastic Ballasted Solar Racking System is suitable for flat surface, which will suitable for any flat surface and not damaged to surface. Fast and easy installation will help installer to save more installation time.
Product Parameters:
|
Brand |
Link Energy |
|
Product name |
HDPE plastic ballasted solar mounting system |
|
Material |
HDPE |
|
Filler |
Gravel,stone |
|
Weight of filler |
100KG |
|
Content |
1x plastic box, 4x mini rail, 4x end clamp |
|
Life time |
20 years |
|
Dimension |
1054x695x507mm |
|
Net weight |
7.5KG |
|
Warranty |
5 years |
|
Panel |
Framed or frameless module |
|
Tilt angle |
18 degree |
|
Shipping port |
Xiamen, China |
|
Payment |
TT/LC |
Features:
1. Simple structure, easy installation, save times and cost.
2. Long life time. 5 years warranty and 20 years service time.
3. No destroy roofs.

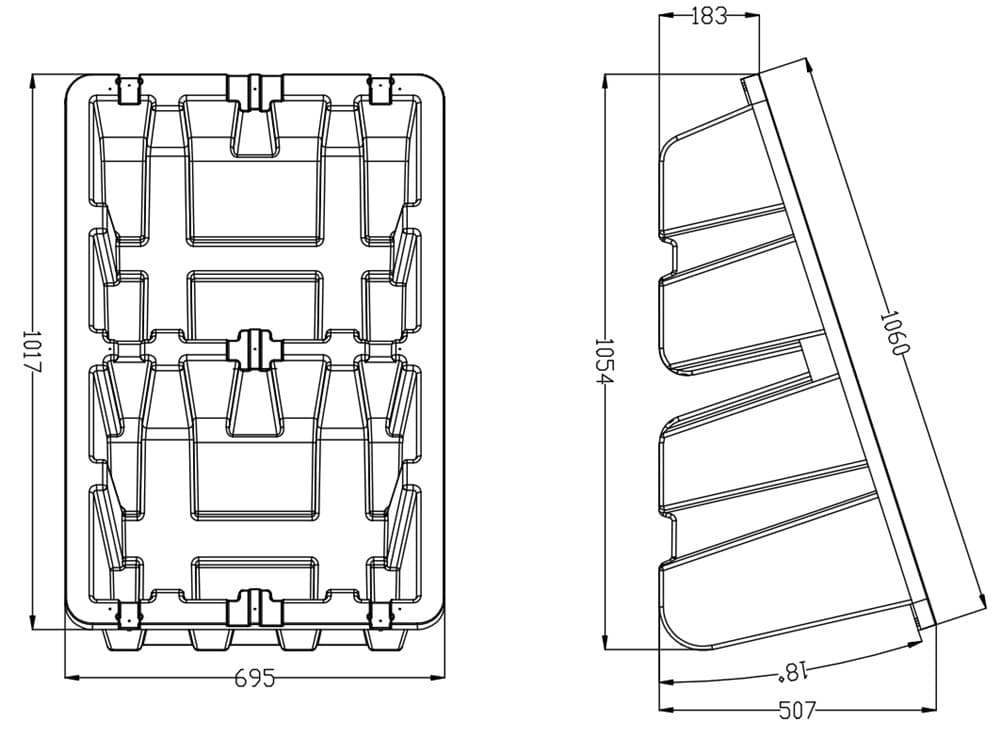

Specification:

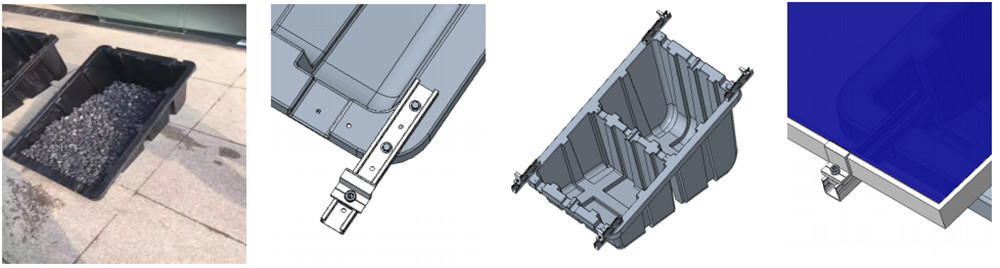

Installation Guide:

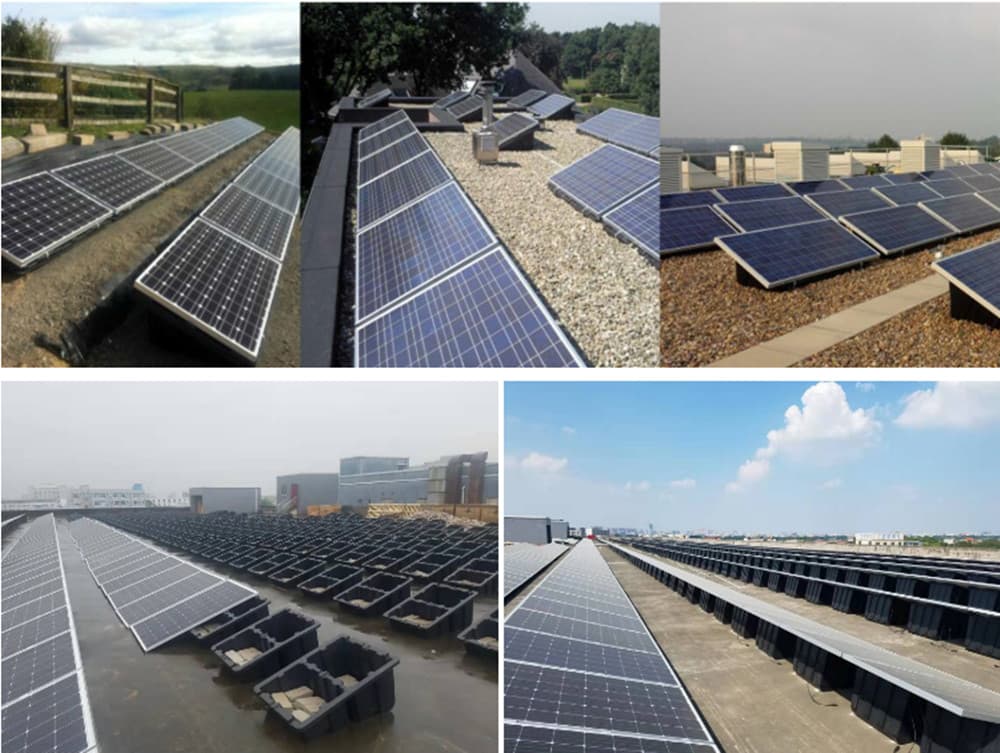

Application:
Packaging & Shipping
Fixted tilt triangle roof mounting systems is design for both commercial and residential roof. Base on clients requirement, it can be design as fixed tilt or adjustable tilt.
