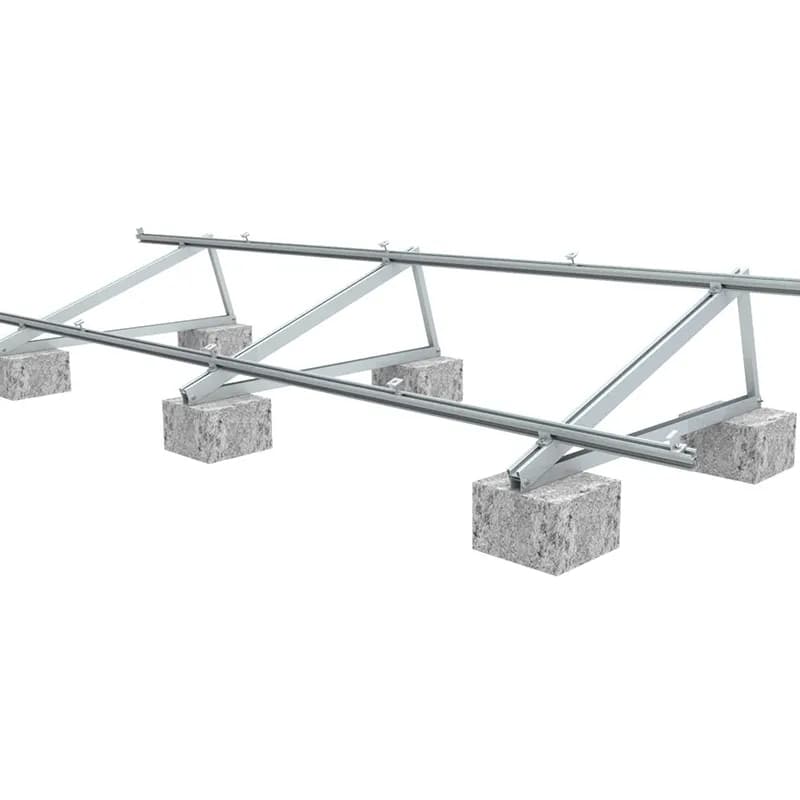

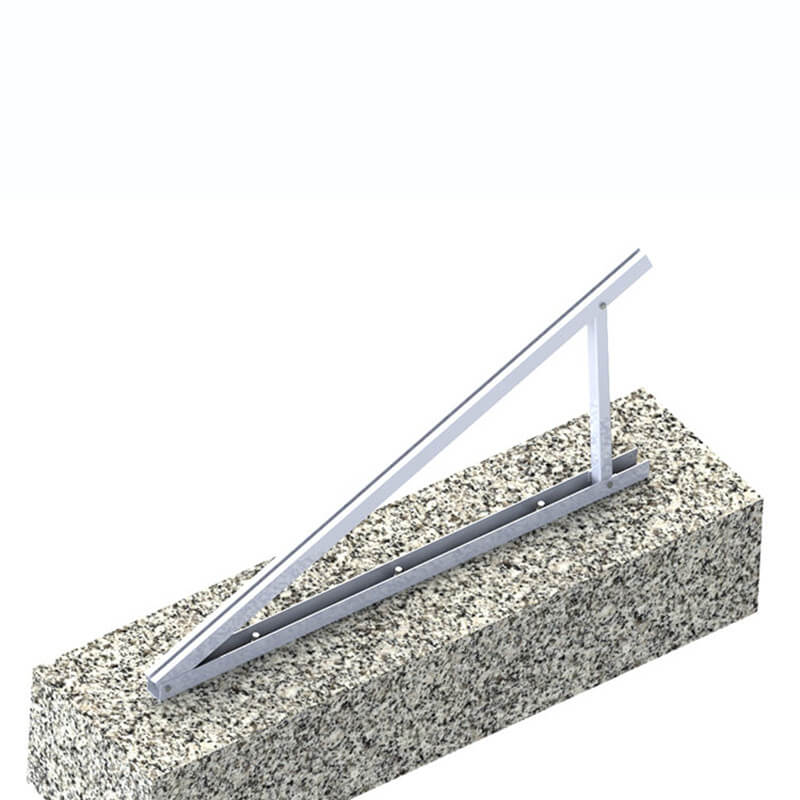

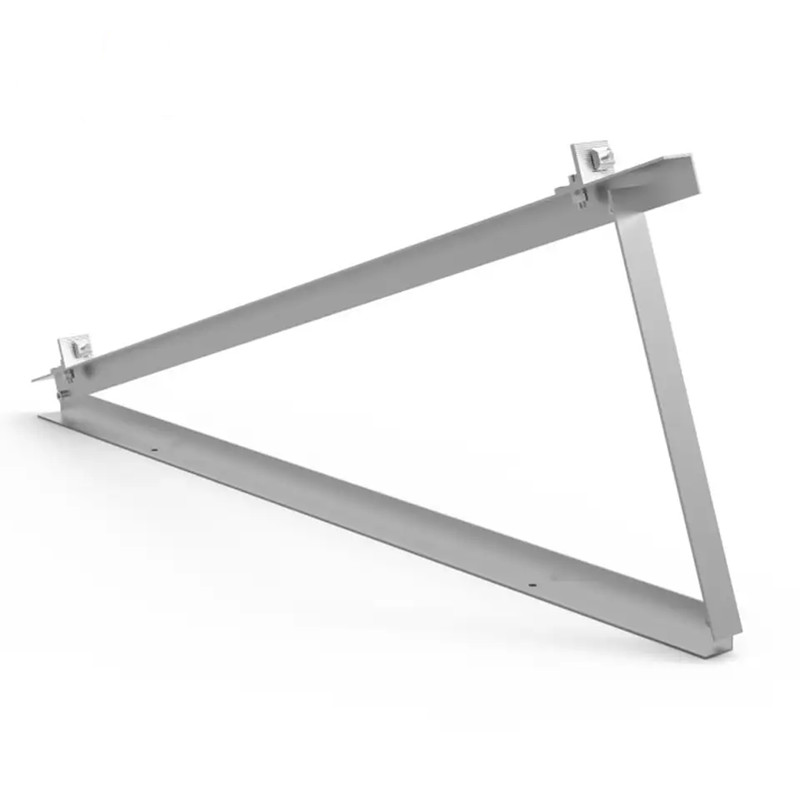

Fixted Tilt Triangle Flat Roof Solar Mounting System

Fixted Tilt Triangle Flat Roof Solar Mounting System

Fixted tilt triangle roof mounting systems is design for both commercial and residential roof. Base on clients requirement, it can be design as fixed tilt or adjustable tilt.

  • Application :

    Flat roof solar mount
  • Item No :

    LE-FR-01
  • Material :

    Al6005-T5 & SUS304
  • Lead Time :

    Within 15 days
  • Applicable Module :

    Framed or frameless module
  • Module Orientation :

    Portrait or landscape

Product Description:

Link Energy triangle fixed tilt solar mounting system is made up high quality extruded aluminum, high pre-assembled and easy installation. This system can be use on concrete foundations or a metal roof with a low angle of slope for that extra strength. With fixed angle supporting frames, solar panels can be installed at the optimal angle for energy output.



For complete triangle fixed tilt roof mounting system, the main part: fixed triangle kits, solar aluminum rails, solar rail clamp, solar rail splice, solar end clamp, solar middle clamp, grounding/earthing lug & clip.



Product Parameters:

Brand

Link Energy

Product name

Triangle tilt solar mounting systems

Material

Al6005-T5 &SUS304

Surface Coating

Anodized

Samples

Free samples, pls contact us.

Max. Wind Speed

60m/s

Max. Snow Load

1.4KN/m²

Warranty

12 years

Service Life

25 years

Installation site

Concrete foundation or metal roof

Shipping port

Xiamen, China

Payment

TT/LC



Features:

1. Simple structure, easy installation, save times and cost.

2. Long life time. 12 years warranty and 25 years service time.

3. It can be used on both roof and ground that require a tilt toward the sun.

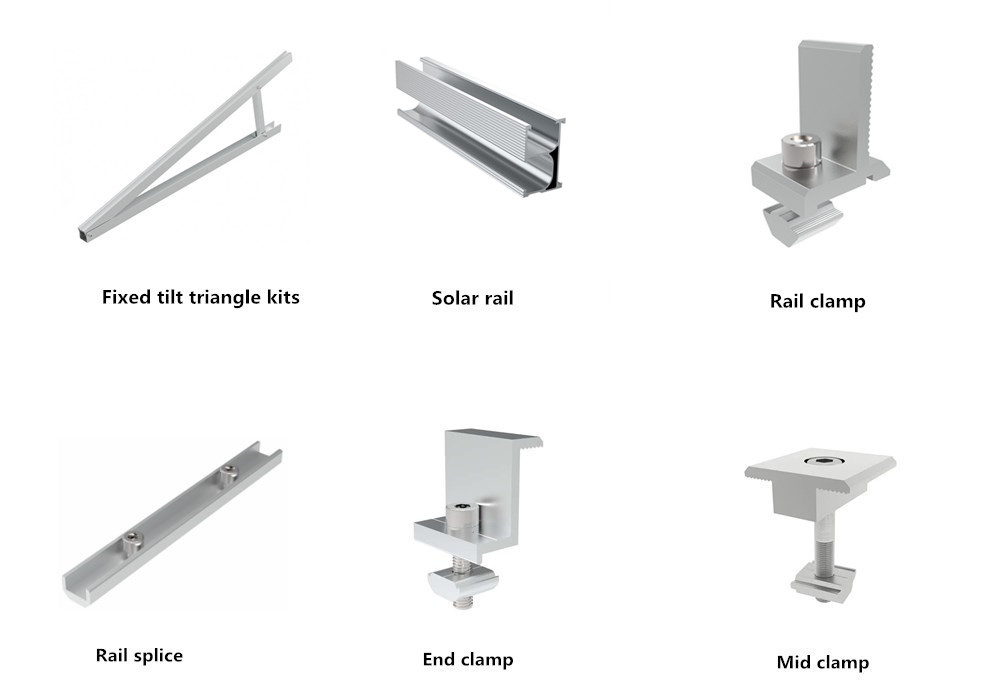

Components List:

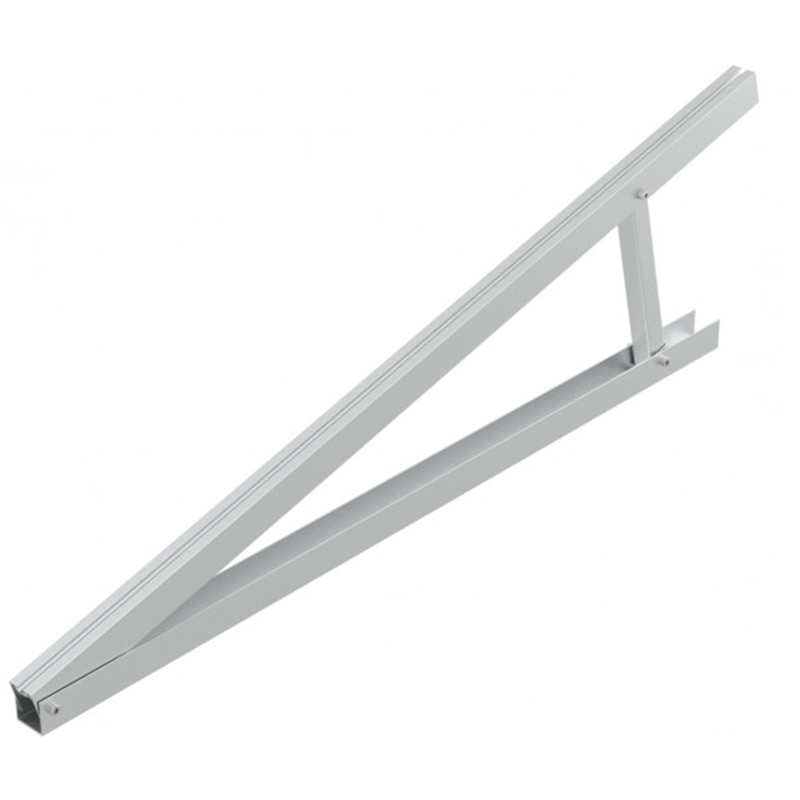

Solar triangle tilt mount



Installation Guide:

Flat roof solar mount

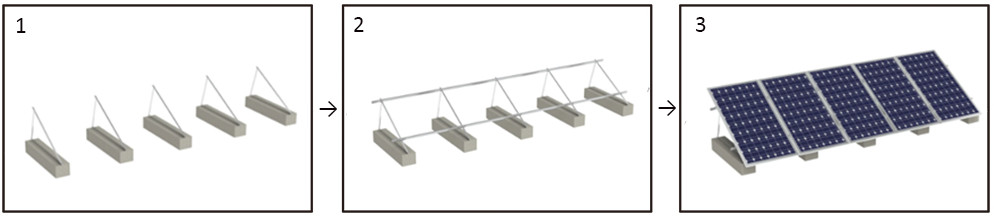

            Step 1: Installation triangle kits                               Step 2: Installation solar rail                                Step 3: Installation solar panel



Installation Site:

Solar triagle mounting

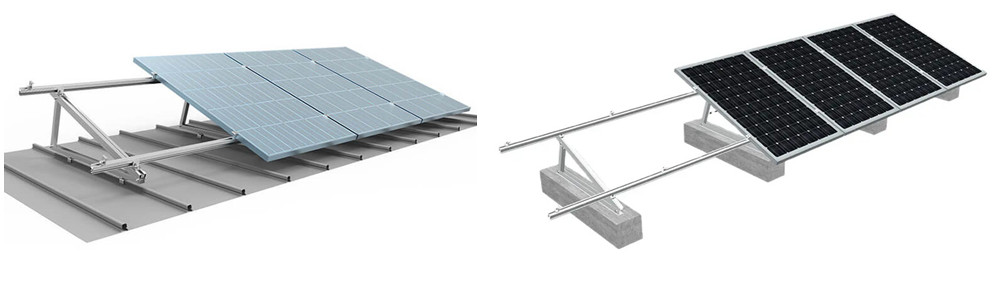

                                                Metal roof                                                                                              Concrete roof

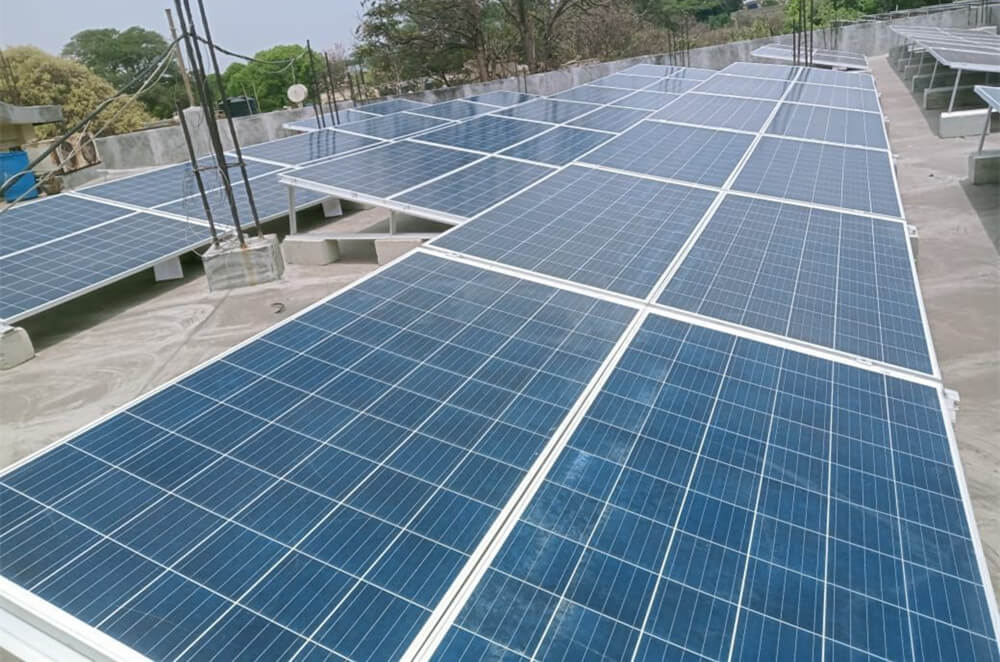

Our Projects:

Flat roof solar panel mounting

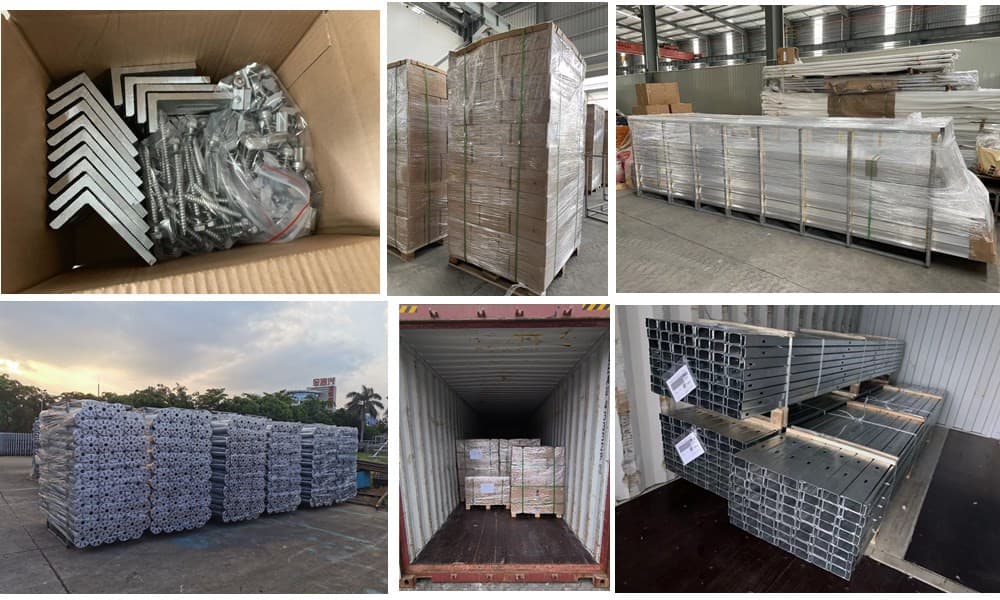

Packaging & Shipping

Solar panel roof mount
