Ballasted Non-penetrating Concrete Flat Roof Solar Mounting System

Ballasted Non-penetrating Concrete Flat Roof Solar Mounting System

Ballasted roof solar mounting systems is a non-penetrating roof solution for flat roof. Designed with high quality anodized aluminum and stainless steel material ensure the systems durable and reliable.

  • Application :

    Concrete flat roof
  • Item No :

    LE-BM-01
  • Material :

    Al6005-T5 & SUS304
  • Lead Time :

    Within 15 days
  • Applicable Module :

    Framed or frameless module
  • Module Orientation :

    Portarit or landscape

Product Introduction:

Link Energy ballasted flat roof solar mounting system is specially engineered for  to non-penetration roofs, which secures the array without damaging the flat roof .This economical system requires no roof penetration and made from lightweight and strong aluminium construction and come with pre-assembled components,they are just require few tools ,it is quick and easy to install.

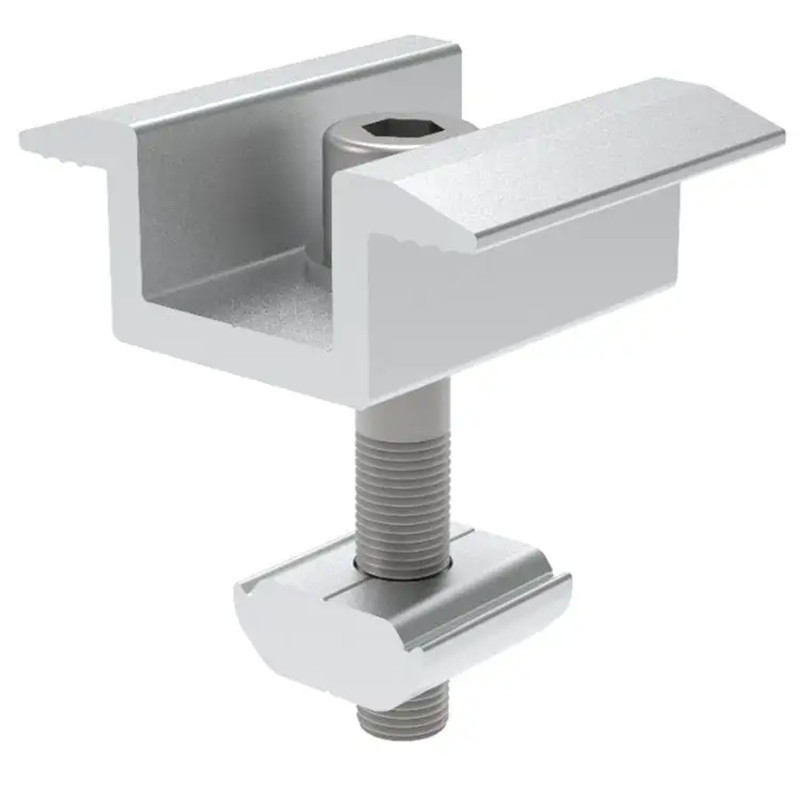

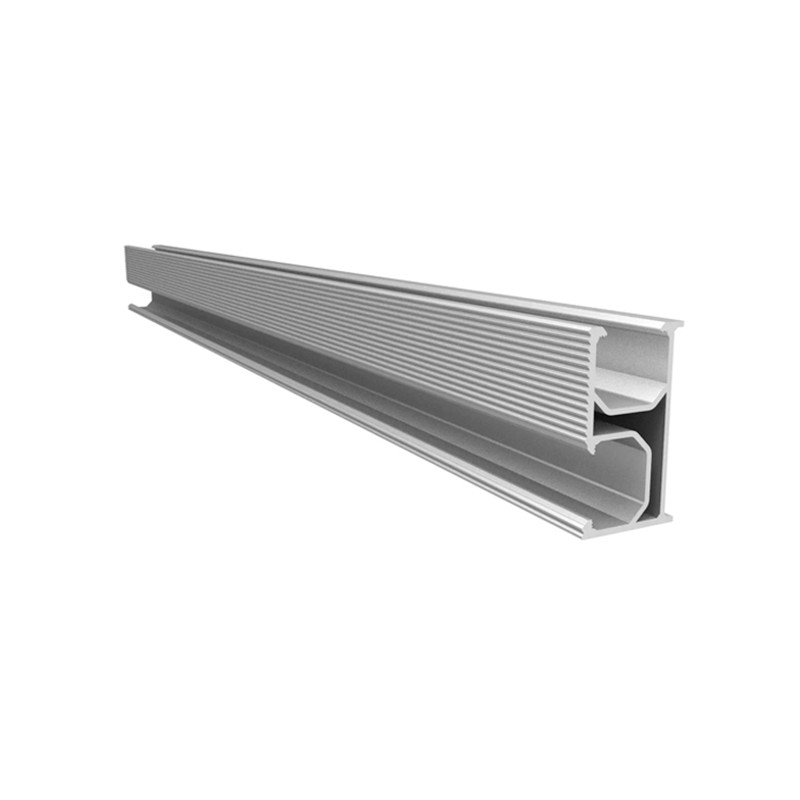

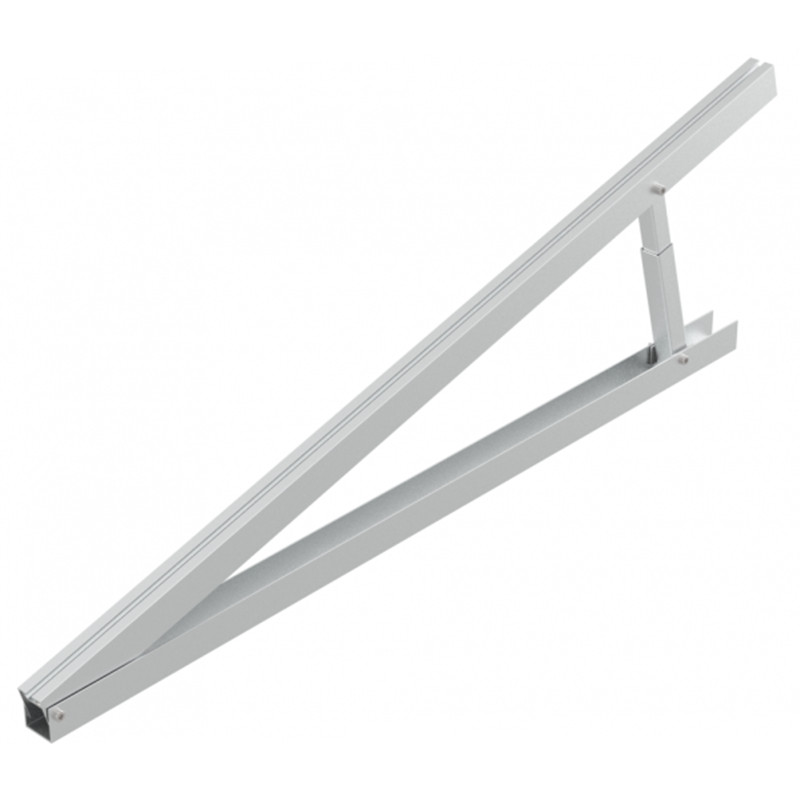

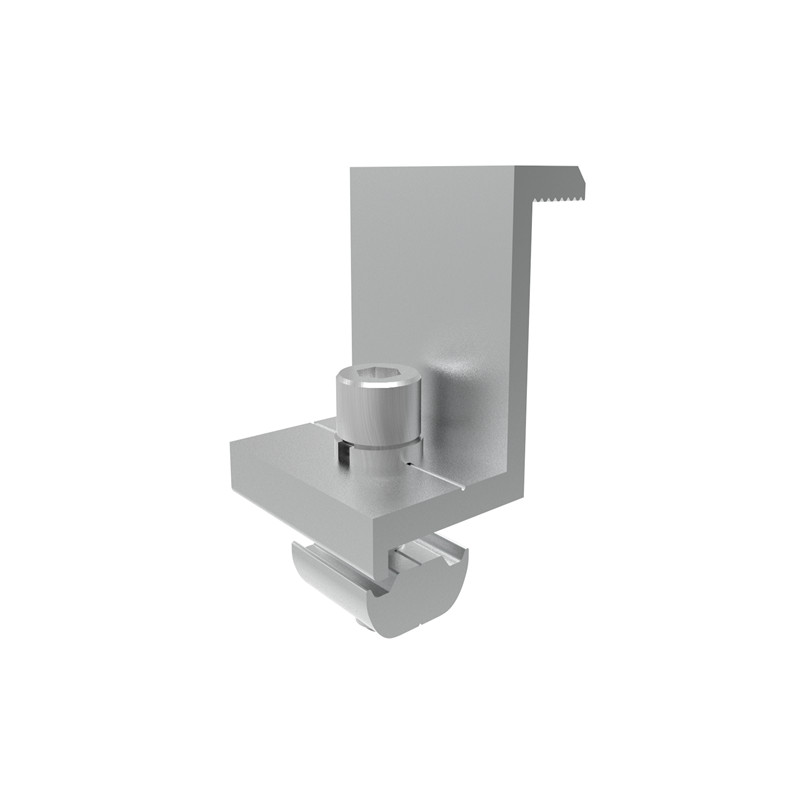

For complete ballasted flat roof solar mounting system, the mainpart: triangle kits, ballasted plate, solar aluminum rails, solar rail clamp, solar rail splice, solar end clamp, solar middle clamp, grounding/earthing lug & clip.



Product Parameters:

Brand

Link Energy

Product name

Ballasted flat roof solar mounting system

Material

Al6005-T5 &SUS304

Surface Coating

Anodized

Samples

Free samples, pls contact us.

Max. Wind Speed

60m/s

Max. Snow Load

1.4KN/m²

Warranty

12 years

Service Life

25 years

Installation site

Concrete flat roof

Tilt angle

10--60 degree

Shipping port

Xiamen, China

Payment

TT/LC



Features:

1. Simple structure, easy installation, save times and cost.

2. Long life time. 12 years warranty and 25 years service time.

3. No destroy roofs.

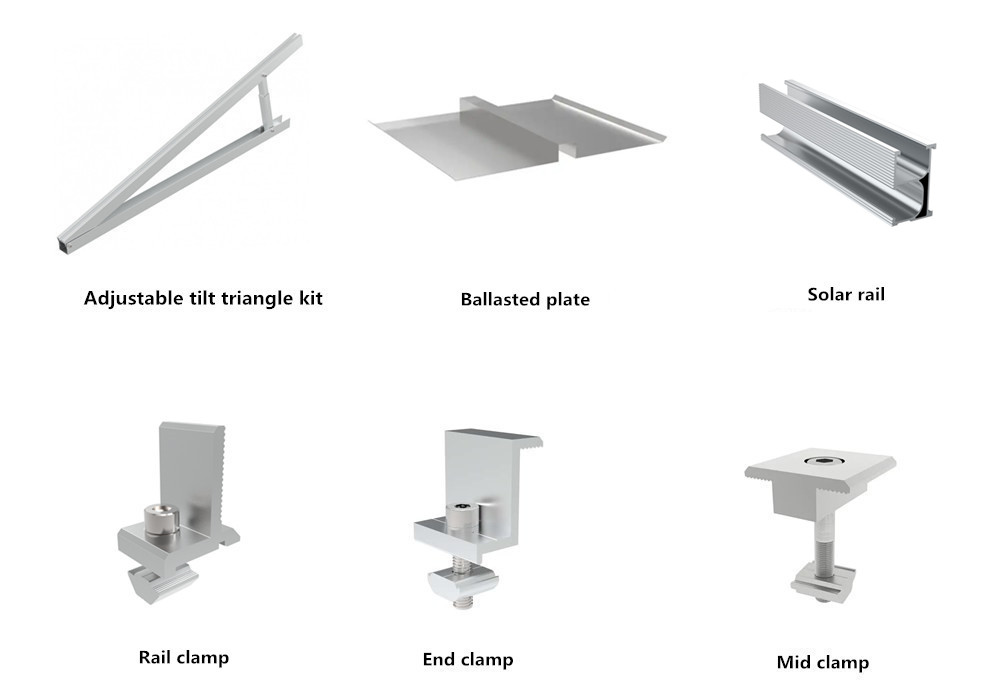

Components List:

Solar ballasted roof mount



Installation Guide:

Ballasted system solar

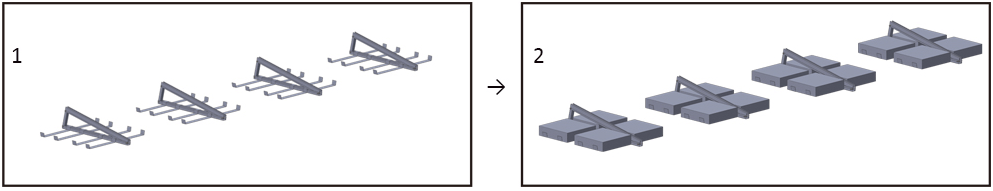

      Step 1: Fix triangle kits and put ballasted plate on it.                                                    Step2: Put the concrete block on ballasted plate.

Solar ballasted racking

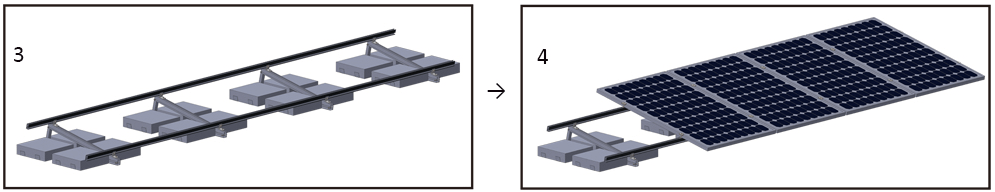

                        Step 3: Installation solar rail                                                                                           Step 4: Installation solar panel

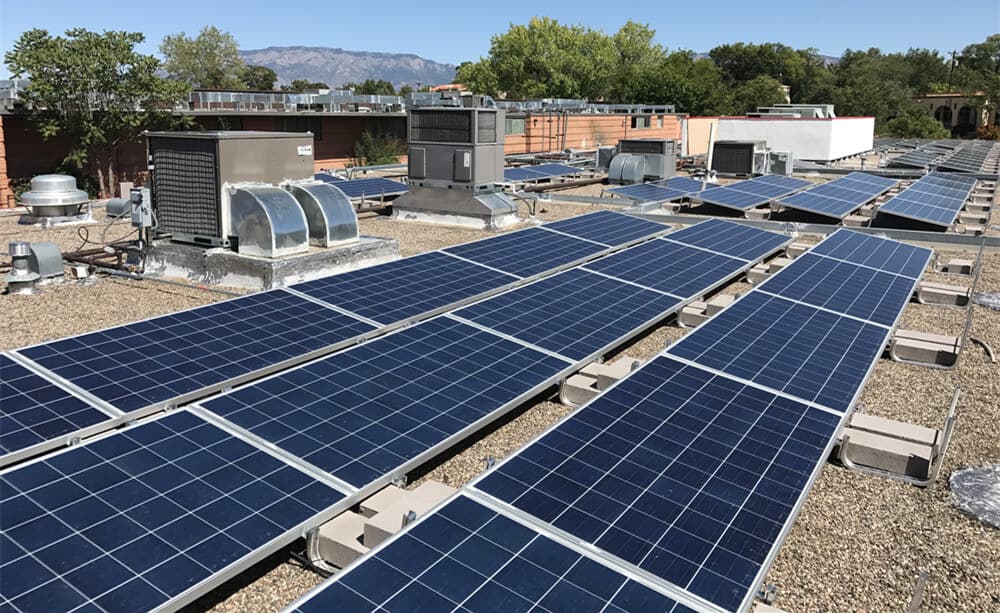

Our Projects:

Flat roof solar structure



Packaging & Shipping

Ballasted solar system
