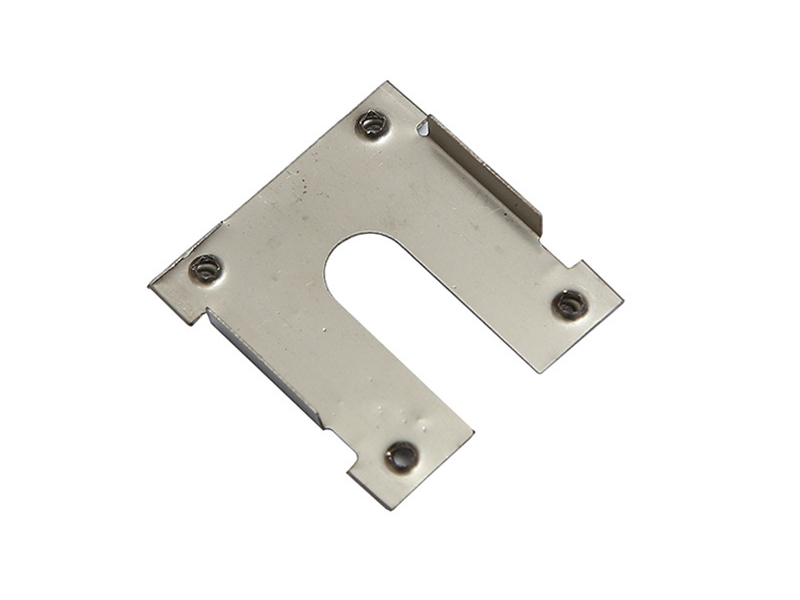

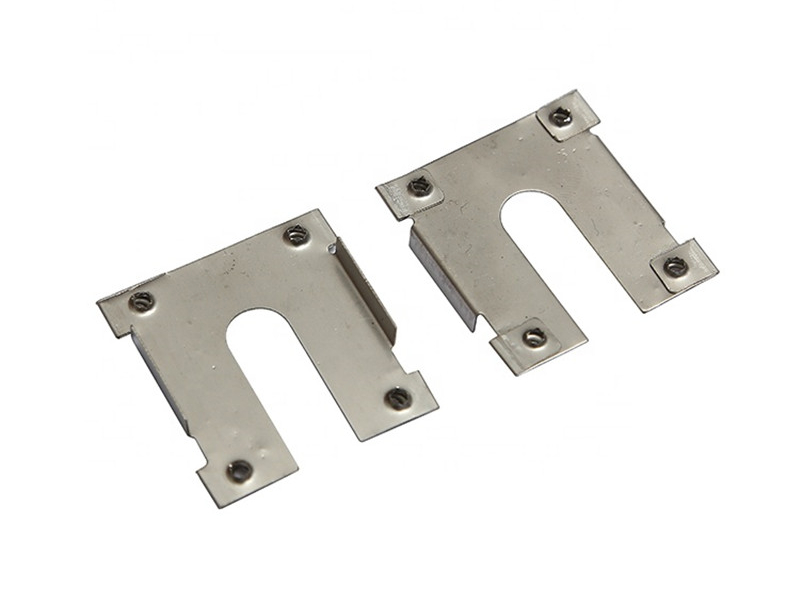

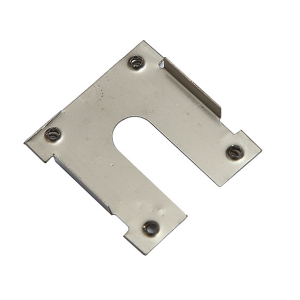

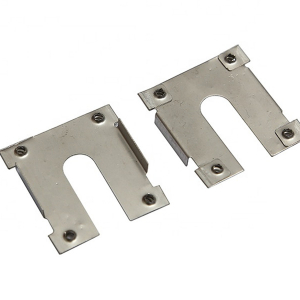

Link Solar Energy solar panel grounding earth clips are designed to bond solar panel to mounting system rail and create an electrical path to ground.
Application :
Solar panel mountingItem No :
LE-R-GC-VMaterial :
Al6005-T5Size :
20mmColor :
SilverModule Orientation :
Portrait or landscapeFinish :
AnodizedProduct Description:
Link Solar Energy has a variety of solar ground clamp designs that insert between the module frame and mounting rail. The teeth of the ground clamp penetrate the anodized coating nicely and create an electrical path through the rail.
Product Parameters:
|
Brand |
Link Solar Energy |
|
Material |
Al6005-T5 |
|
Surface Coating |
Anodized |
|
Samples |
Free samples |
|
Max. Wind Speed |
60m/s |
|
Max. Snow Load |
1.4KN/m² |
|
Warranty |
12 years |
|
Service Life |
25 years |
|
Installation site |
Solar panel mounting |
|
Tilt angle |
The same as the roof |
|
Shipping port |
Xiamen, China |
|
Payment |
TT/LC |
|
Lead Time |
Within 15 days |
|
Product Origin |
China |
|
MOQ |
1 set |
|
Applicable Module |
Framed or frameless module |
Features:
1. Simple structure, easy installation, save time and cost
2. Corrosion resistant aluminum and stainless steel components
3. Available for different solar panel
4. Designed for residential and commercial applications

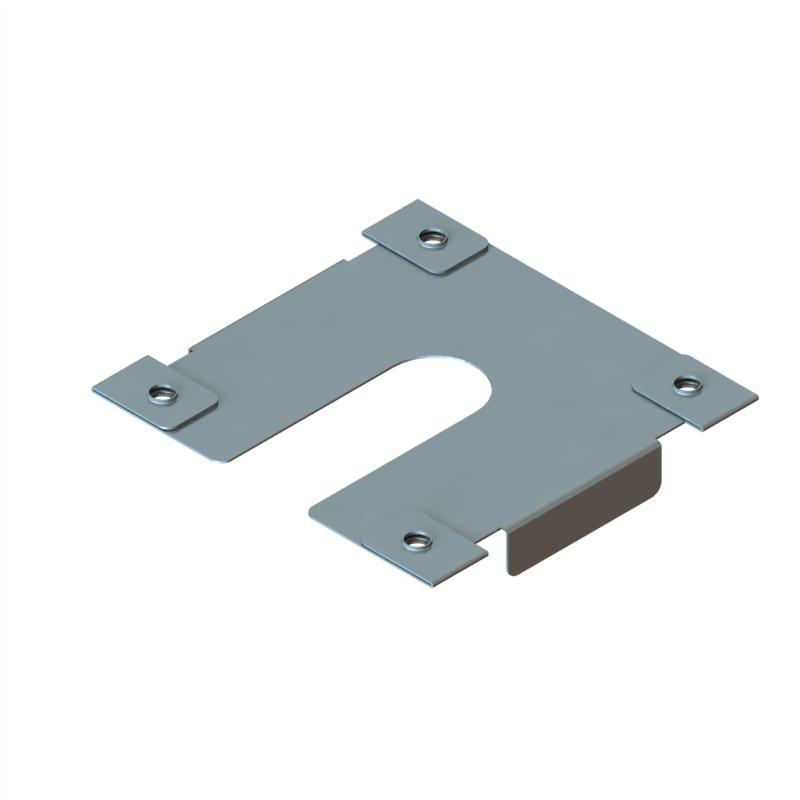

Components List:
 |
 |
 |
|
LE-R-GC-V |
LE-R-GC-V |
LE-R-GC-V |
Installation Guide:
 |
 |
 |
|
1. Assemble the grounding clip |

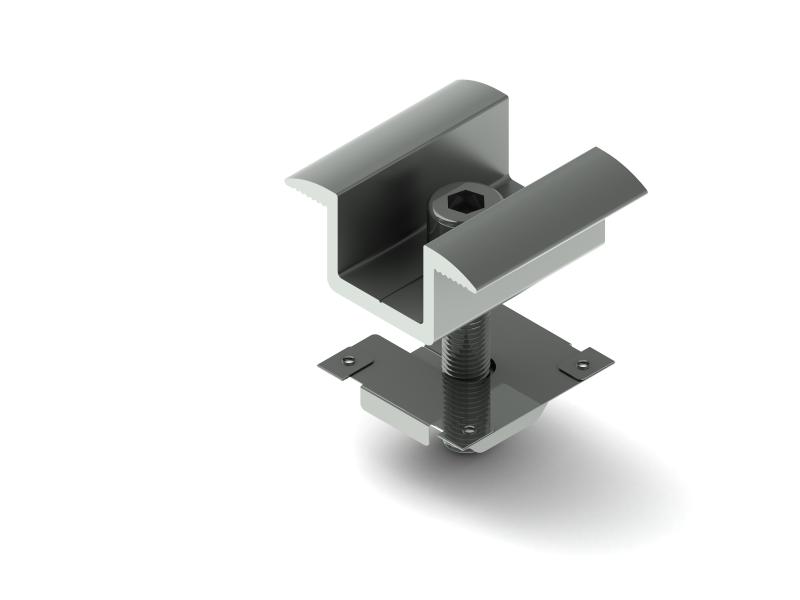

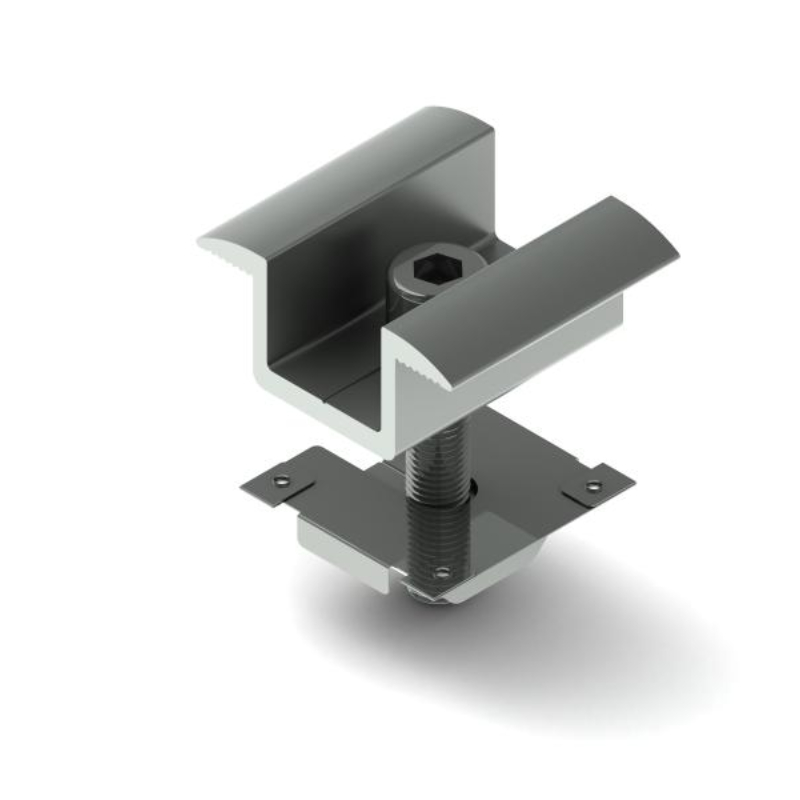

2. Place grounding clip on mid clamp |

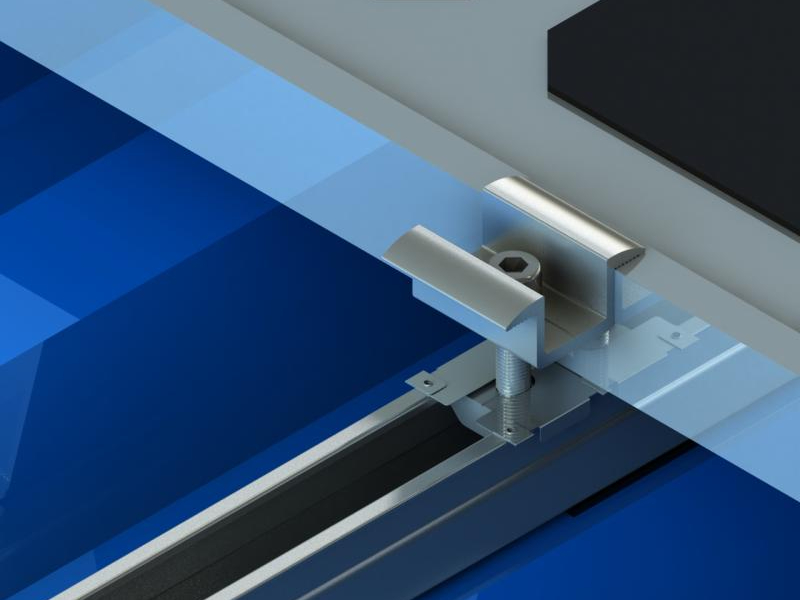

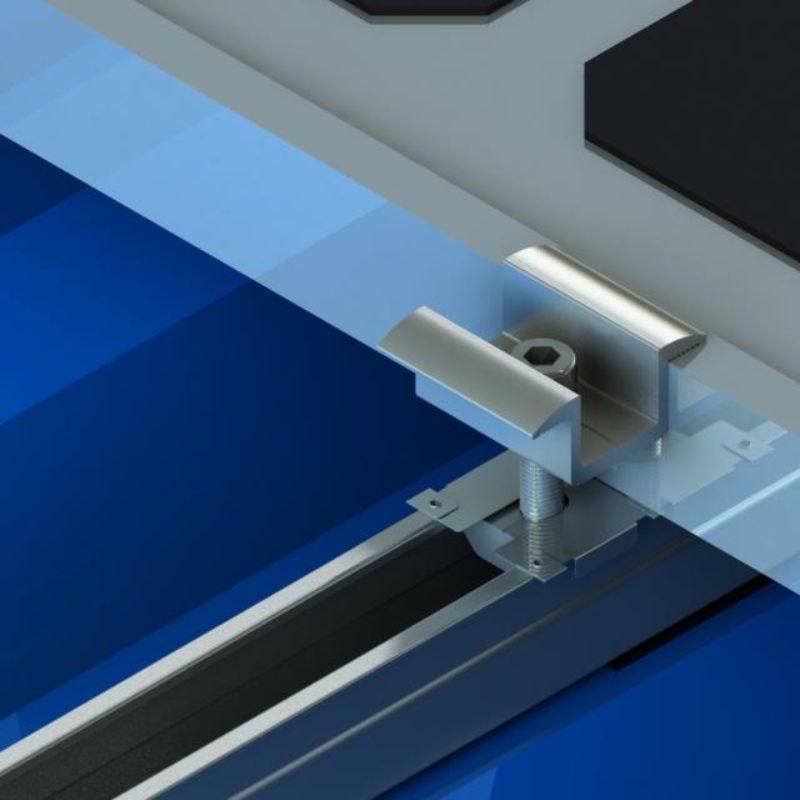

3. Fixed on the mid of the rail |

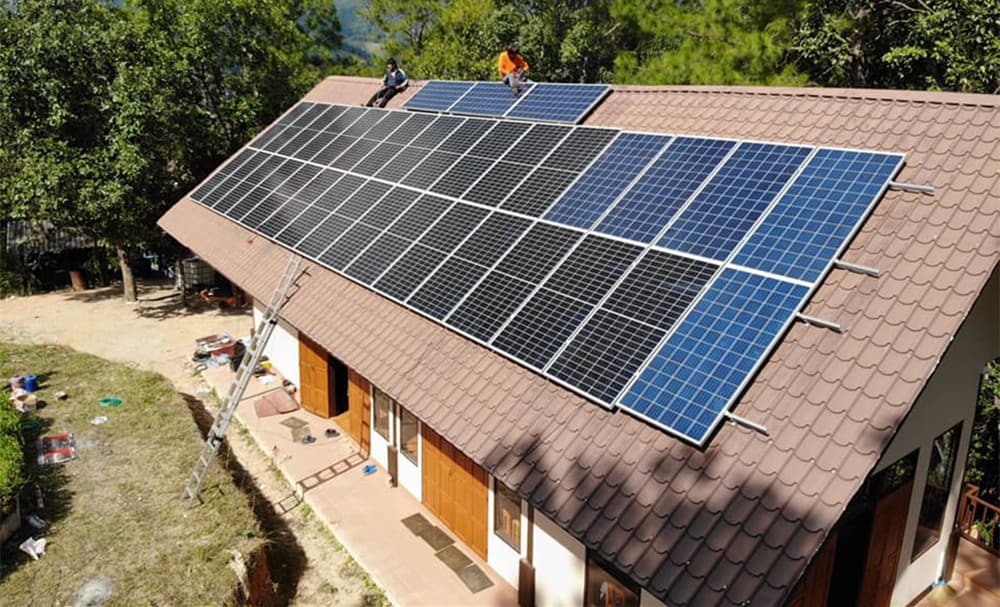

Our Projects:
