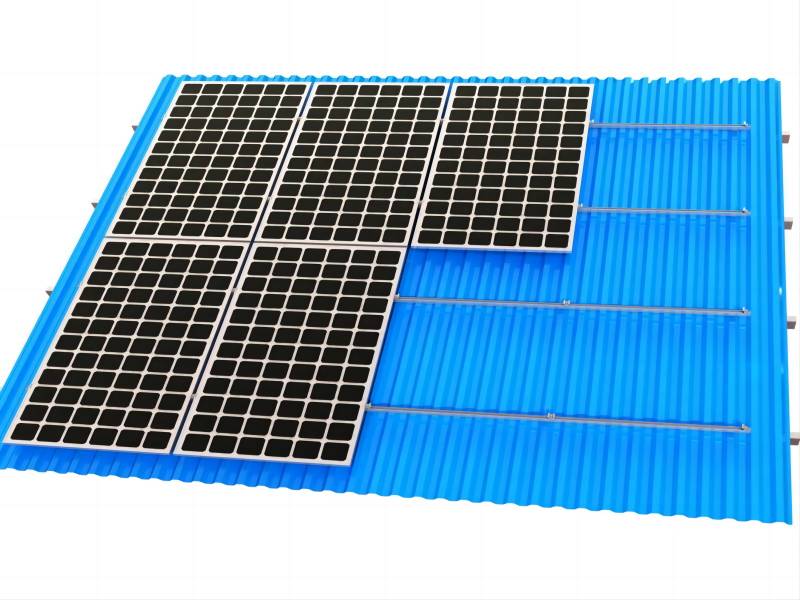

Link Solar Energy metal roof solar mounting systems using L bracket, is an efficient solution for metal pitched roof, metal flat roof and trapezoidal metal solar roof installation.
Application :
Metal roof solar mountItem No :
LE-R-LF-SD01Material :
Al6005-T5Size :
30mmColor :
SilverModule Orientation :
Portrait or landscapeFinish :
AnodizedProduct Description:
L bracket metal roof solar mounting systems is an economic and simple solution for tin roof mounting. L feet can be fixed on both wooden or steel beams. This solution is applicable for all kinds of metal sheet rooftops.
Product Parameters:
|
Brand |
Link Solar Energy |
|
Material |
Al6005-T5 |
|
Surface Coating |
Anodized |
|
Samples |
Free samples |
|
Max. Wind Speed |
60m/s |
|
Max. Snow Load |
1.4KN/m² |
|
Warranty |
12 years |
|
Service Life |
25 years |
|
Installation site |
Metal/tin roof |
|
Tilt angle |
The same as the roof |
|
Shipping port |
Xiamen, China |
|
Payment |
TT/LC |
|
Lead Time |
Within 15 days |
|
Product Origin |
China |
|
MOQ |
1 set |
|
Applicable Module |
Framed or frameless module |
Features:
1. Simple structure, easy installation, save time and cost
2. Corrosion resistant aluminum and stainless steel components
3. Available for different tin rooftops
4. Designed for residential and commercial applications

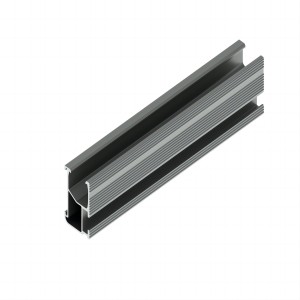

Components List:
 |
 |
 |
 |
 |
|

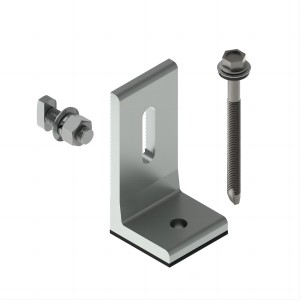

LE-R-LF-SD01 |
LE-RR-H45 |
LE-RR-RS45 |

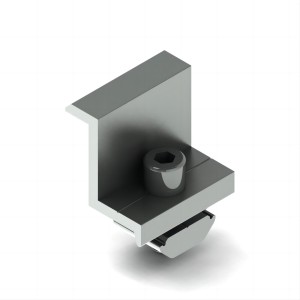

LE-R-EC35-04 |

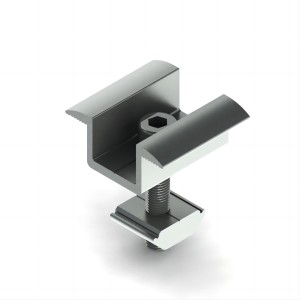

LE-R-MC35-02 |
Installation Guide:
 |
 |
 |
|
1. Install the rubber pad and L feet in marked position |

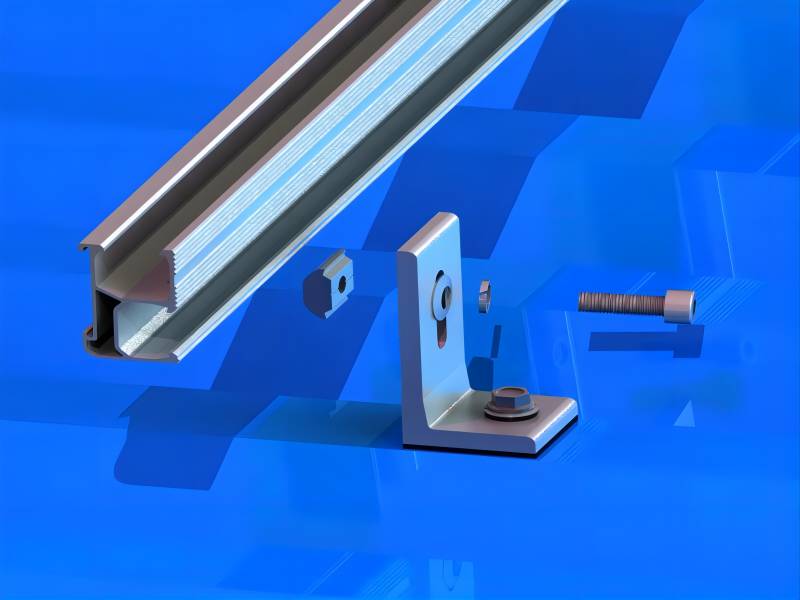

2. Fix the rail to L feet by T nuts on the whole roof |

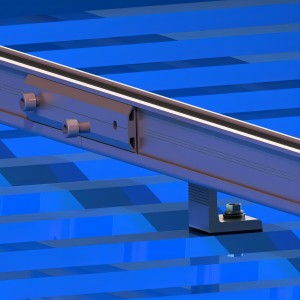

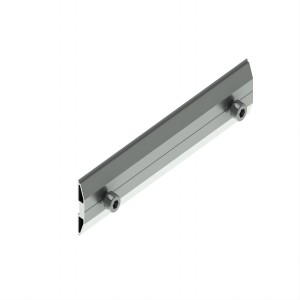

3. Connect the rail with rail splice to reach needed length |
 |
 |
 |

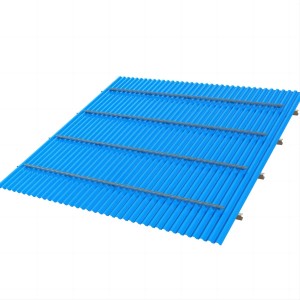

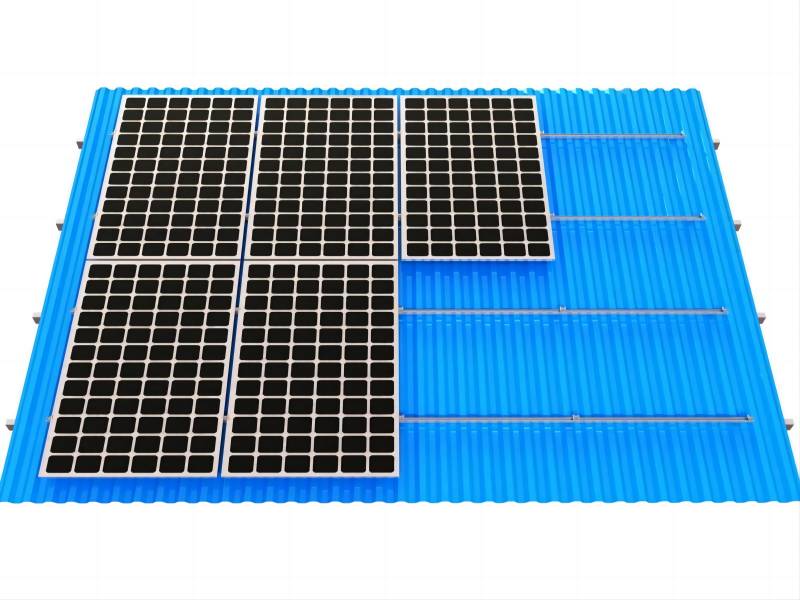

| 4. Install L feet, rail and rail splice on roof |

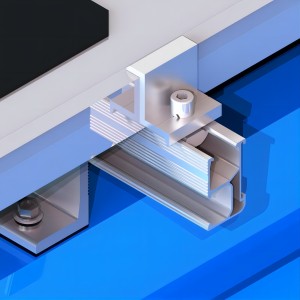

5. Install the end clamps to fix the panel |

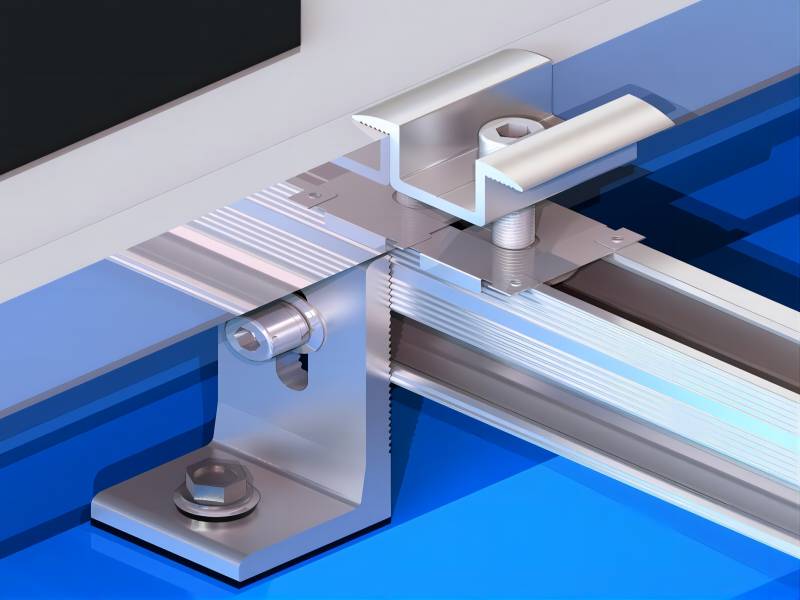

6. Install the mid clamps to fix the panel |
Other Solution:
 |
 |
 |

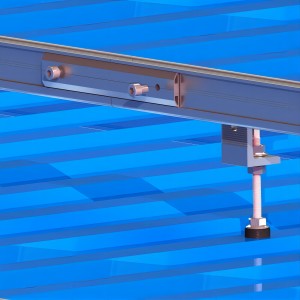

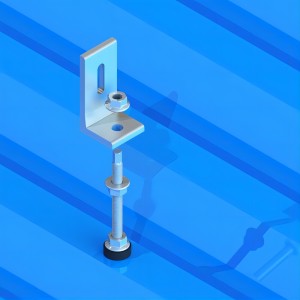

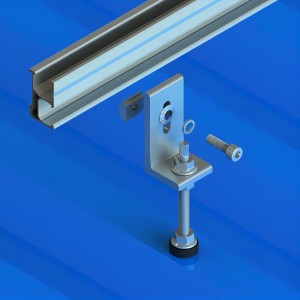

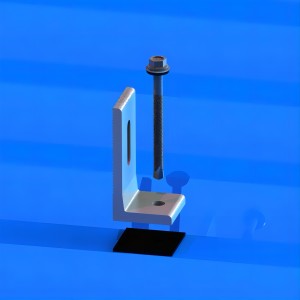

| 1. Install the pre-assembled hanger bolts in marked position | 2. Fix the rail to L feet by T nuts on the whole roof | 3. Connect the rail with rail splice to reach needed length |
 |
 |
 |

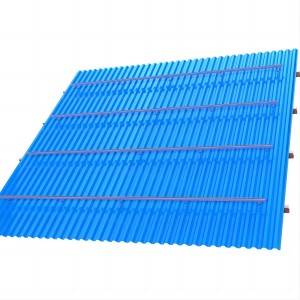

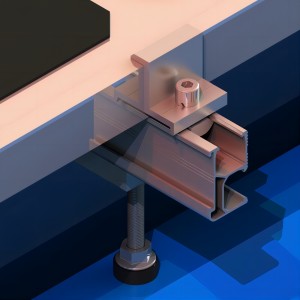

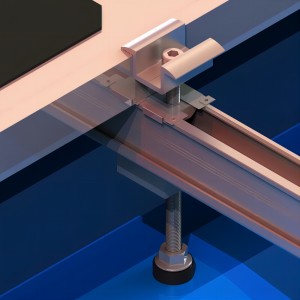

| 4. Install L feet, rail and rail splice on roof | 5. Install the end clamps to fix the panel | 6. Install the mid clamps to fix the panel |

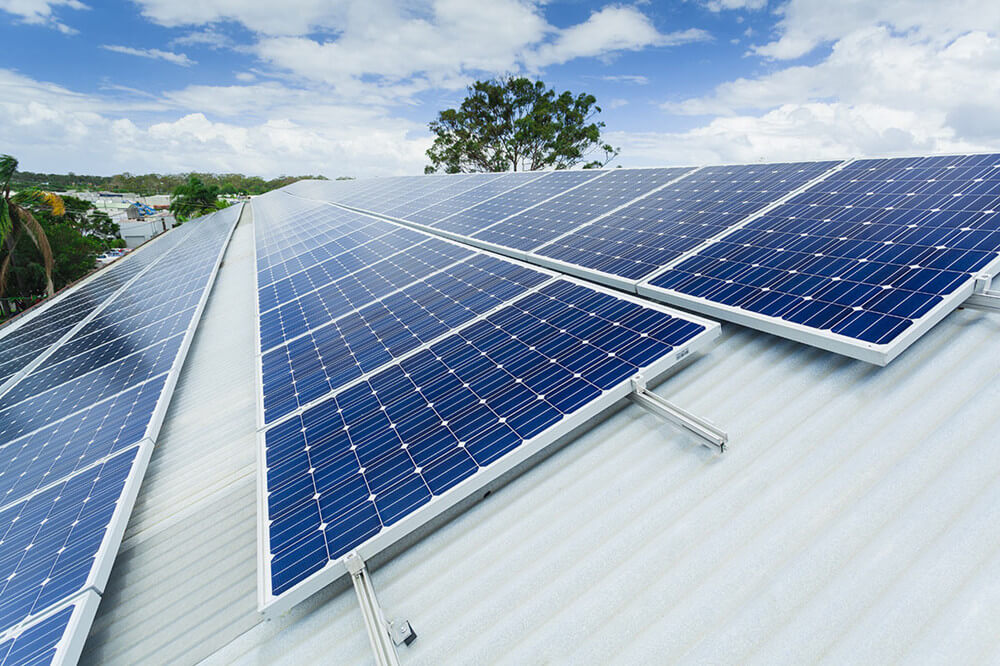

Our Projects:

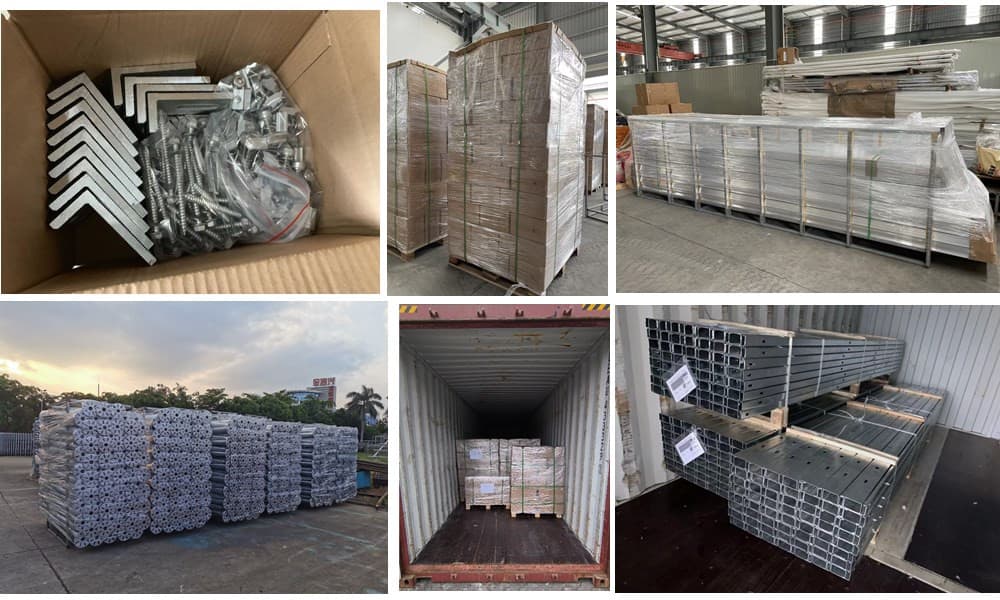

Packaging & Shipping:
