Adjustable Tilt Roof Solar Mounting System

Product Description:

Link Energy adjustable tilt roof mounting system is applicable to mount solar panels on metal roof or flat concrete roof, could be adjusted to three angle ranges 10-15 degree, 15-30 degree and 30-60 degree. It is a tilt solution widely used for residential rooftop solar PV system and commercial rooftop system.

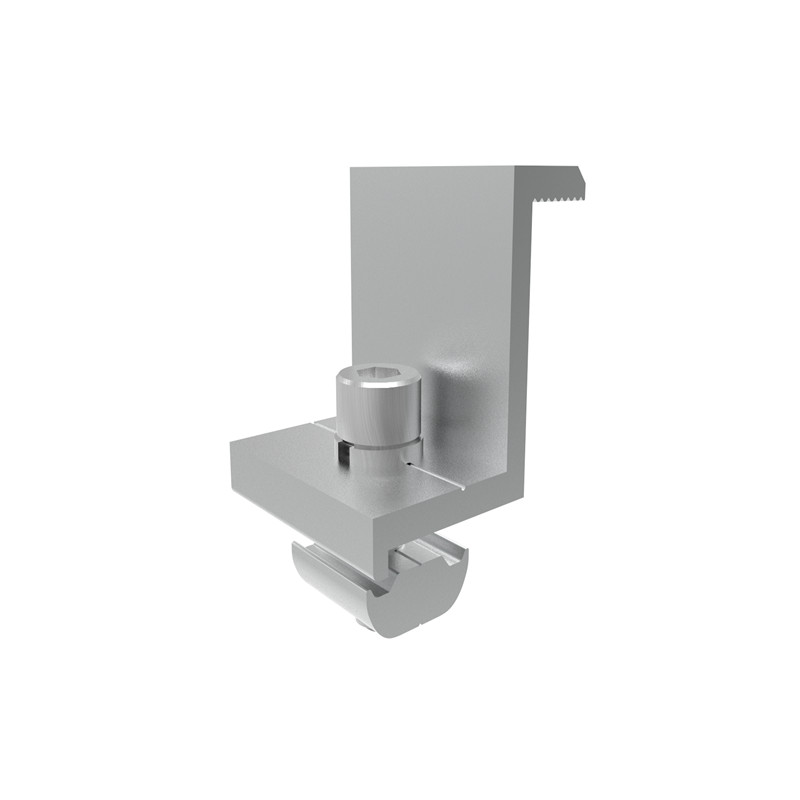

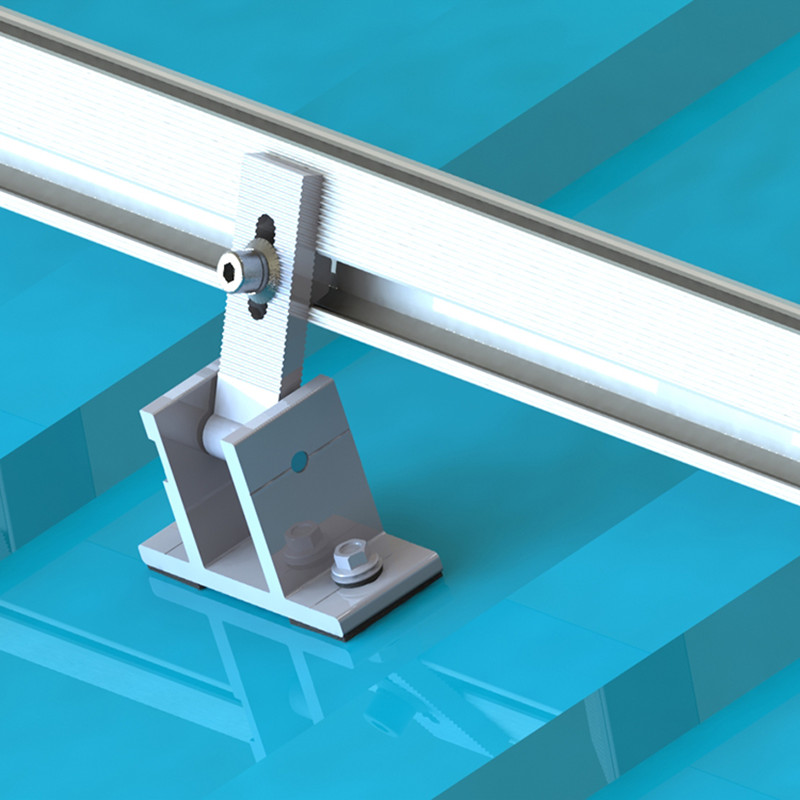

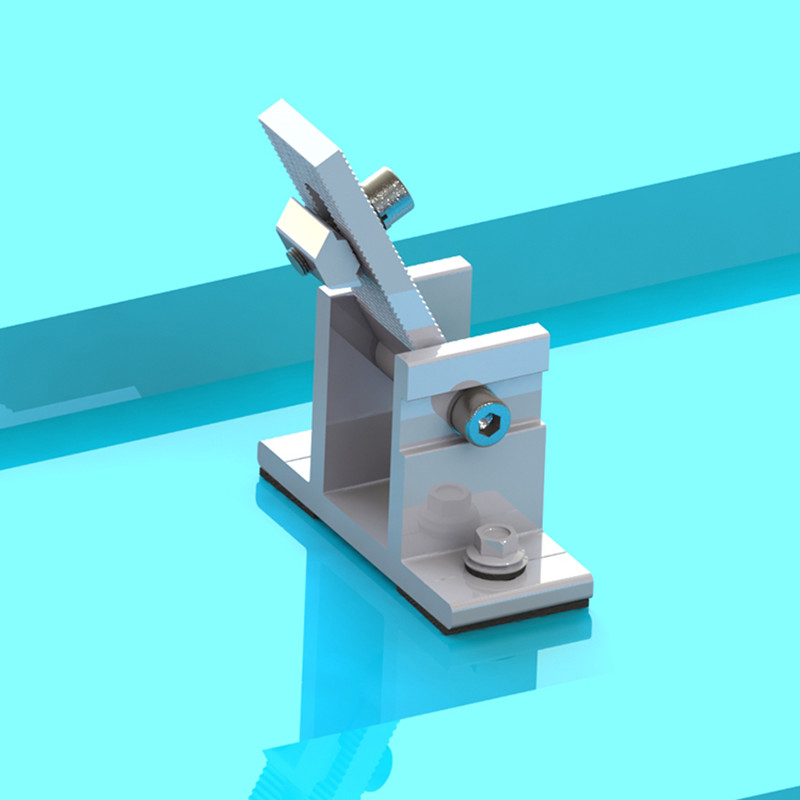

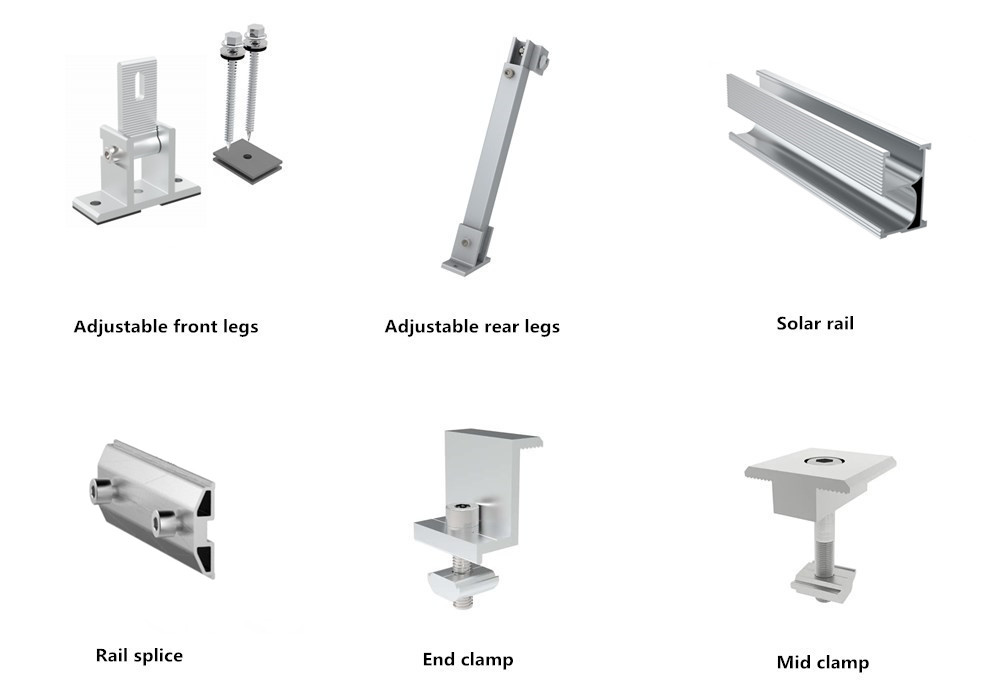

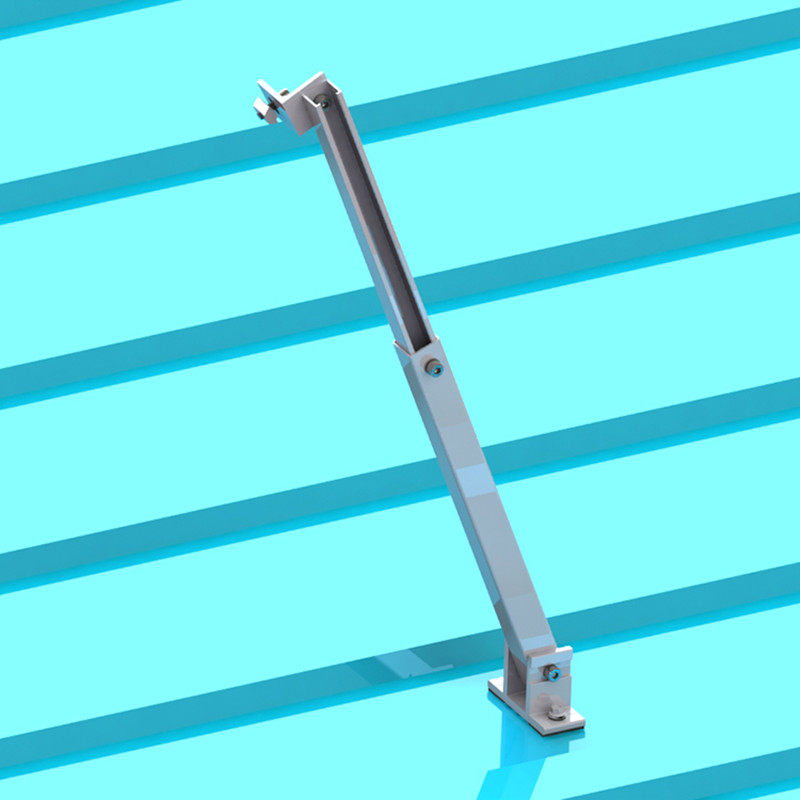

For complete solar adjustable tilt roof mounting system, the main part: adjustable front legs, adjustable rear legs, solar aluminum rails, solar rail splice, solar end clamp, solar middle clamp, grounding/earthing lug & clip.

Product Parameters:

Features:

1. Simple structure, easy installation, save times and cost.

2. Long life time. 12 years warranty and 25 years service time.

3. Adjustable tilt, both for metal/tin roof and flat concrete roof.

Components List:

Installation Guide:

There are three installation ways.

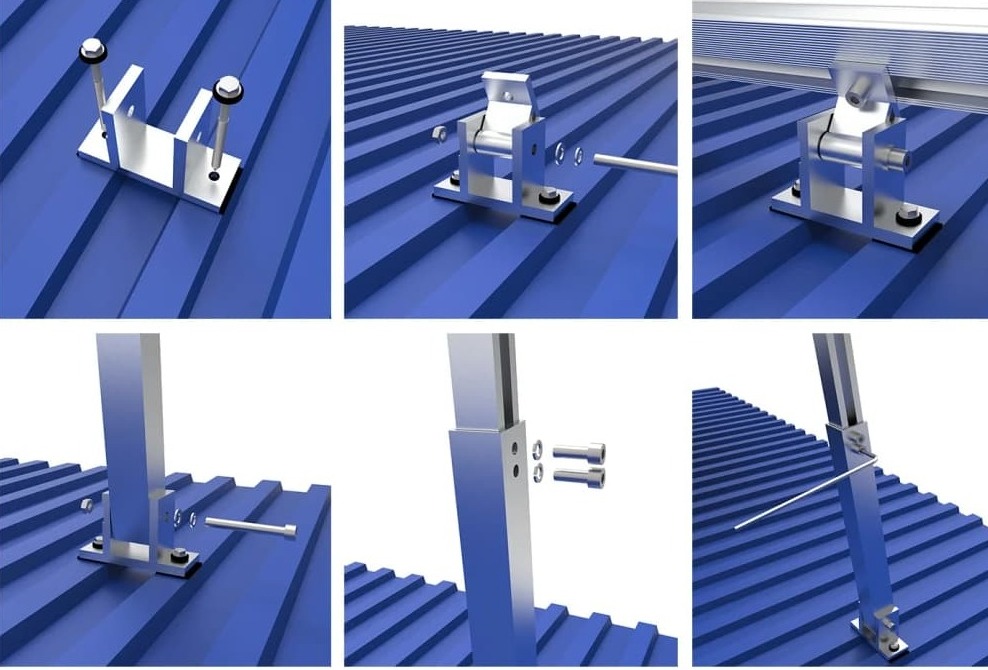

①If trapezoid metal roof, install the Adjustable Front Leg and the Adjustable Rear Leg on the rooftop in the correct position as planned, drilling the screw into the roof beam below.

②If non trapezoidal metal rooftop, install the Clip Lock on the rooftop first then install the Adjustable Front Leg and the Adjustable Rear Leg on the Clip Lock.

③If flat concrete rooftop, install the Adjustable Front Leg and the Adjustable Rear Leg on the rooftop directly with the expansion bolt, or install them on the cement block through embedded bolt.

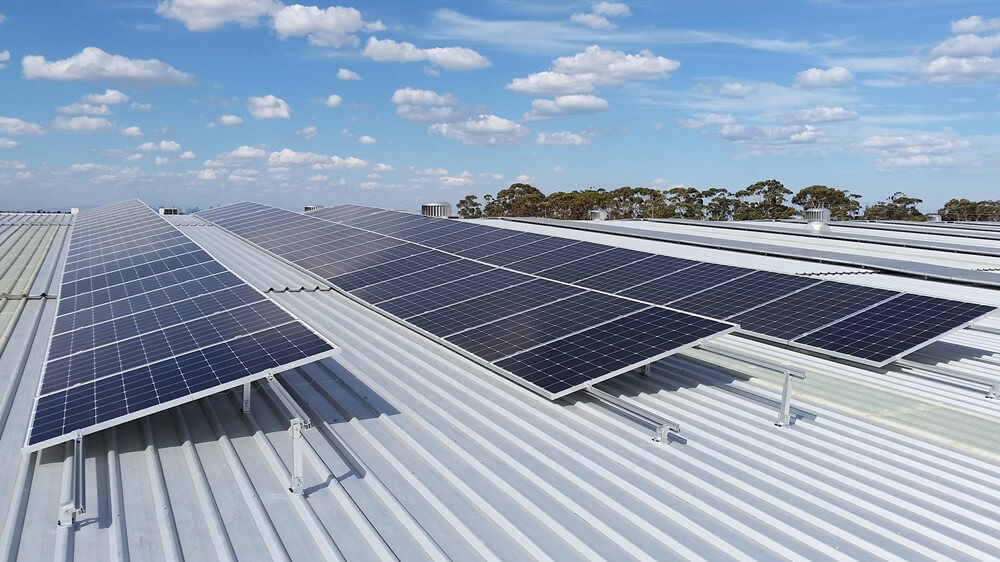

Our Projects:
