Galvanized steel pile ramming ground solar mounting systems is adply suitable for large commercial and utility-scale solar photovoltaic projects. The single pile drilled into the ground, without other foundation, such ground screw or cement block, reduces installation time and labor cost.
Application :
Ground solar mountingItem No :
LE-PM-01Material :
Galvanized Q235 & Al6005-T5Lead Time :
15-20 daysApplicable Module :
Framed or frameless moduleModule Orientation :
Portarit or landscapeProduct Description:
Link Energy pile drilling solar ground mounting system is applicable for common ground or uneven ground. This pile ground solar mounting system can be applied to large commercial scale installations. Structure is made by galvanized steel and anodized aluminum. The whole structure of this kind of mounting system is simple so that the installation is very convenient and can save much time and labor cost.
Product Parameters:
|
Brand |
Link Energy |
|
Product name |
Pile drilling solar ground mounting system |
|
Material |
Galvanized Q235 & Anodize aluminum |
|
Foundation |

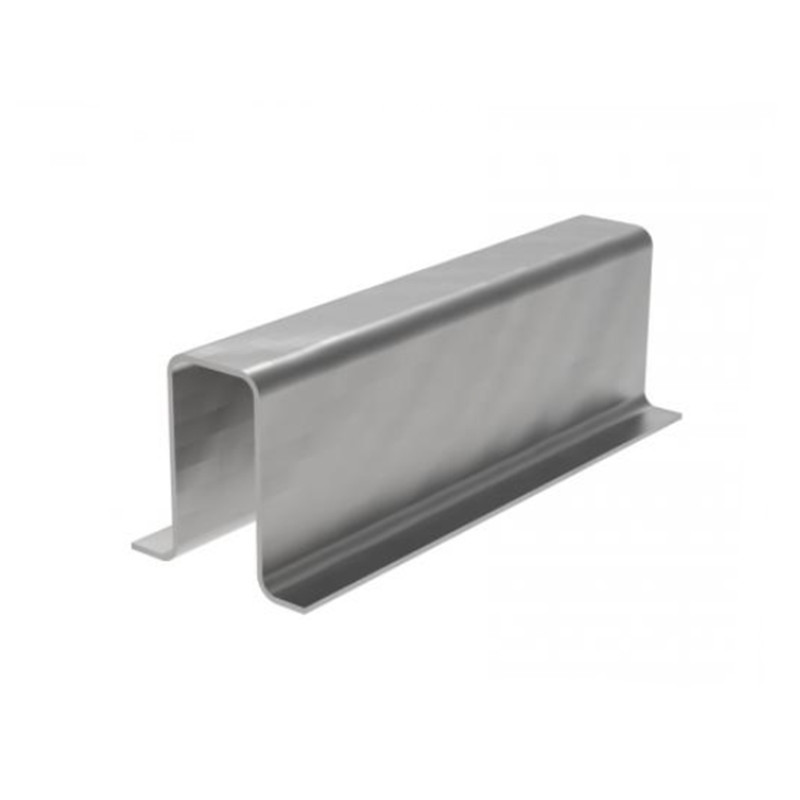

C pile or U pile |
|
Max. Wind Speed |
60m/s |
|
Max. Snow Load |
1.4KN/m² |
|
Warranty |
12 years |
|
Service Life |
25 years |
|
Installation site |
Open field |
|
Tilt angle |
Up to 60 degree |
|
Shipping port |
Xiamen, China |
|
Payment |
TT/LC |
Features:
1. Various piling support types available for soil condition choose.
2. HDG single pile +Aluminum(AL-6005-T5) solar pre-assembled rack, High strength and high corrosion resistance.
3. Very practical for large scale solar PV projects.

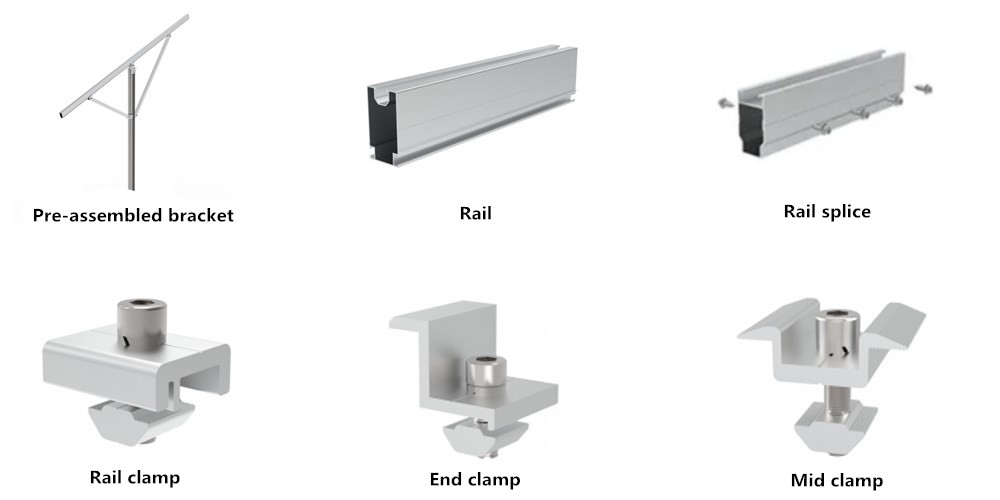

Components List:
Installation Guide:

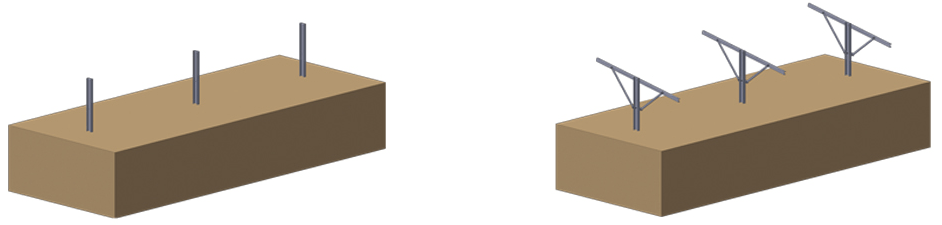

Step 1: Installation solar pile Step 2: Installation pre-assembled structure

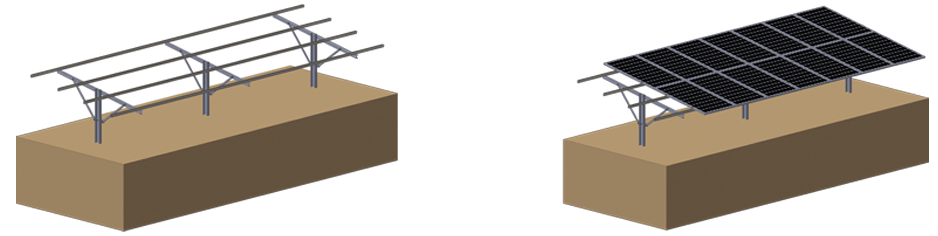

Step 3: Installation solar rail Step 4: Installation solar panel

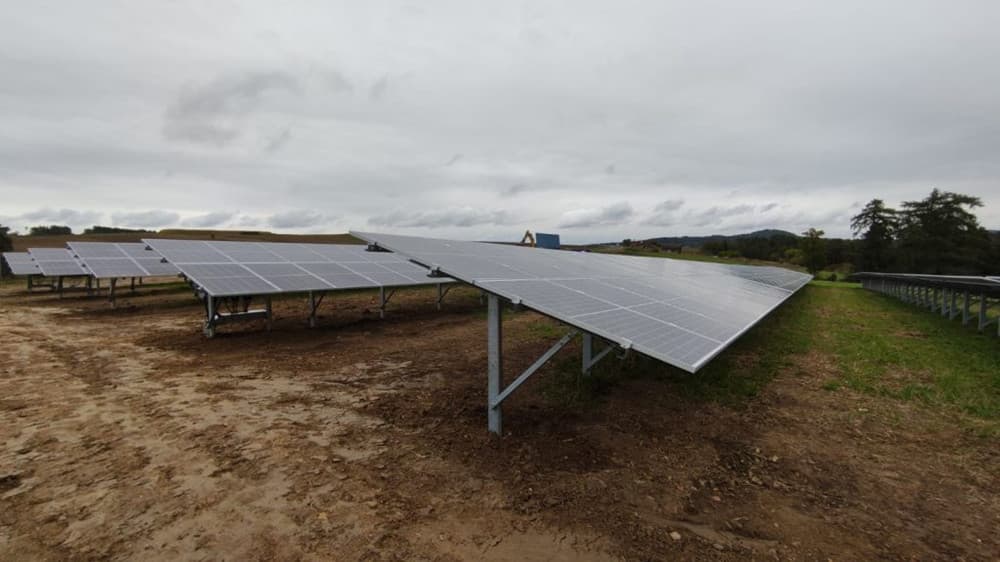

Our Projects:
Packaging & Shipping
Link Energy aluminum ground solar PV mounting systems is generally installed in open filed. The foundation can be ground screw or cement block. The structure is made by high quality anodzied aluminum, easy installation and durable.
